Waste plastic PE PP films bags washing recycling machine line
Introduction:plastic recycling machine
Material: Plastic Film / PP PE Woven Bag / Non-woven fabric, raffia etc
Product size: 30-100mm or customized
Moisture content remain: <3%

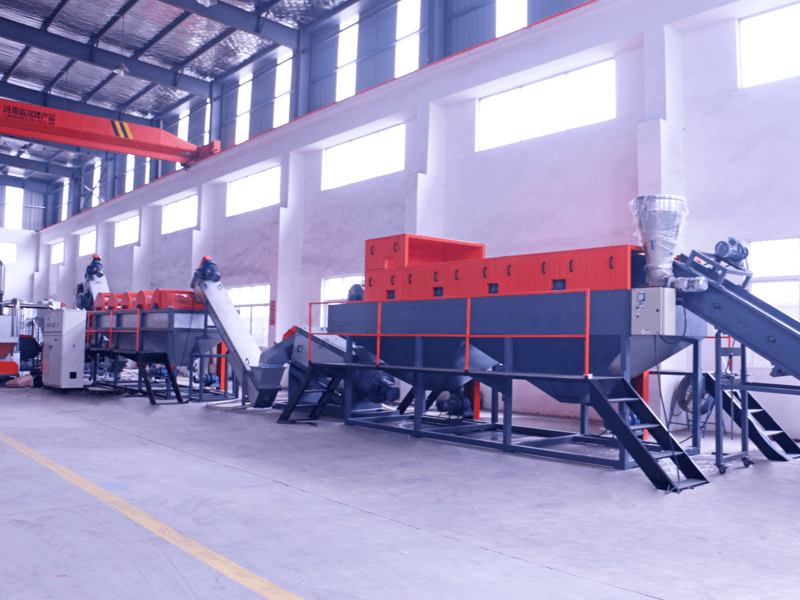

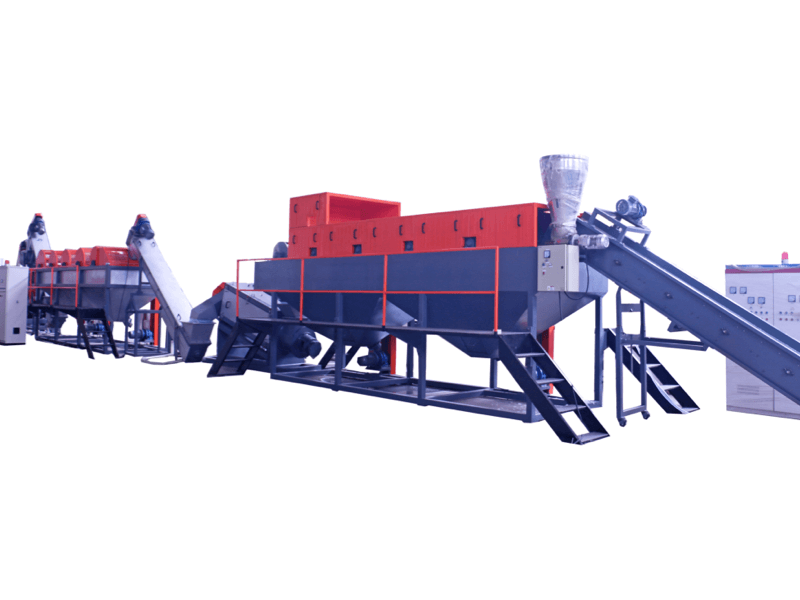

This WASTE PLASTIC PE PP FILM BAGS RECYCLING MACHINE is designed and manufactured by PLASTAR MACHINERY, which is widely used for recycling waste plastic PE/LDPE/LLDPE film, PP woven bag, PP Jumbo bag, etc.
The waste dirty material go through crushing, friction washing, washing, dewatering, hot air drying process will turn to be clean flakes for pelletizing.
The line can be displayed "L" or "U" shape according to clients' workshop.
We can also customize the washing line components according to client's material and product requirement.
Main crushing washing recycling line models:
Model | Capacity | Install power | Water supply | Man power | Area required |
PL-300 | 300KG/H | 120KW | 4-5m3/H | 2-3person | 23*5*3.5(L*W*H) |
PL-500 | 500KG/H | 180KW | 7-8m3/H | 3-4person | 25*5*5.5(L*W*H) |
PL-1000 | 1000KG/H | 250KW | 8-10m3/H | 4-5person | 40*6*5.5(L*W*H) |
Progress flow(PP PE film standard system):
Belt conveyor: conveying dirty plastic film or bag into crusher. If too much scrap iron, metal detector may be needed.
Crusher: can crushing with water, cut plastic film or bag into small pieces
Screw loader: load film pieces into the next step
High-speed washing machine: Washing out the sand, soil and loading the material
Washing tank: separate the sand, soil and other dirties

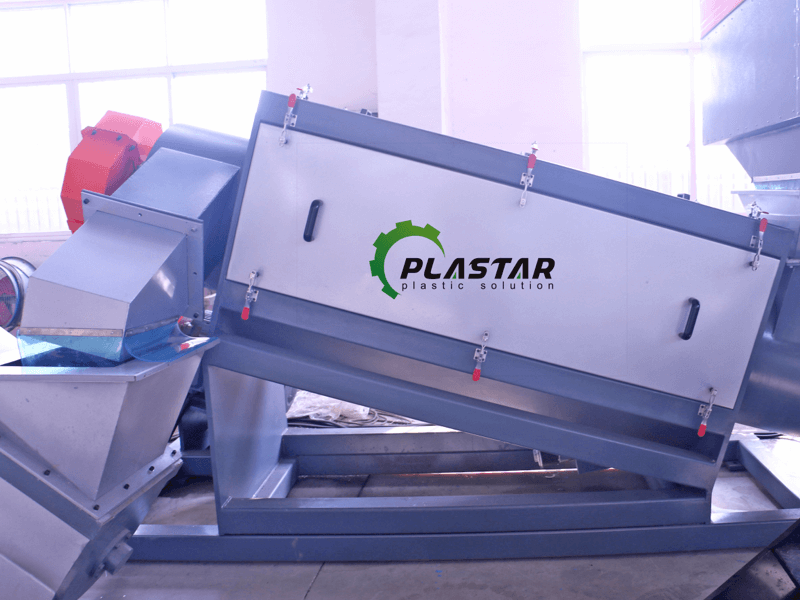

Squeezing dryer machine: Remove the water from the material
