Waste PP PE Flakes Pelletizing Recycling Line
This type of plastic pelletizing production line is desighed for hard pp hdpe ldpe crushed flakes specially,with features of energy saving ,stable performance , good plasticizing , cleaning and drying effection;
Pelletizing flow: the bulk materials or thick flakes after crushed will be conveyed into the single screw extruder by screw loader,then,compressing,plasticizing in the extruder and remove the violatile and moisture by the vacuum degassing system, after filtering impurities through screen changer, finally we can get recycled granules. with different screw diameters of extruders, the capacity can ranges from 100 to 1500kg/h.
Recycling Material of Plastic Recycling Pelletizing Machine:
Material | PE, HDPE, LDPE, LLDPE, PP, CPP, BOPP, EPS etc. |
Shape | Film, Bag, Woven bag, Raffia,Bubble film, Foam, nonwoven fabric, Filament,sheet,chips |
Type | Loose, Bundle, Roll, Scrap |
Origin | Off cut, Washed film, In house waste, Regrind |
Basic data of Plastic Recycling Pelletizing Machine:
Model | Diameter of screw (mm) | L/D | Motor Power (KW) | Capacity (kg/h) |
PSD 80 | 80 | 36 | 45/55 | 160-220 |
PSD 100 | 100 | 36 | 90/110 | 300-380 |
PSD 120 | 120 | 36 | 132 | 450-480 |
PSD 140 | 140 | 36 | 160/185 | 500-650 |
PSD 160 | 160 | 34 | 220/250 | 800-1000 |
PSD 180 | 180 | 34 | 315 | 1000-1200 |

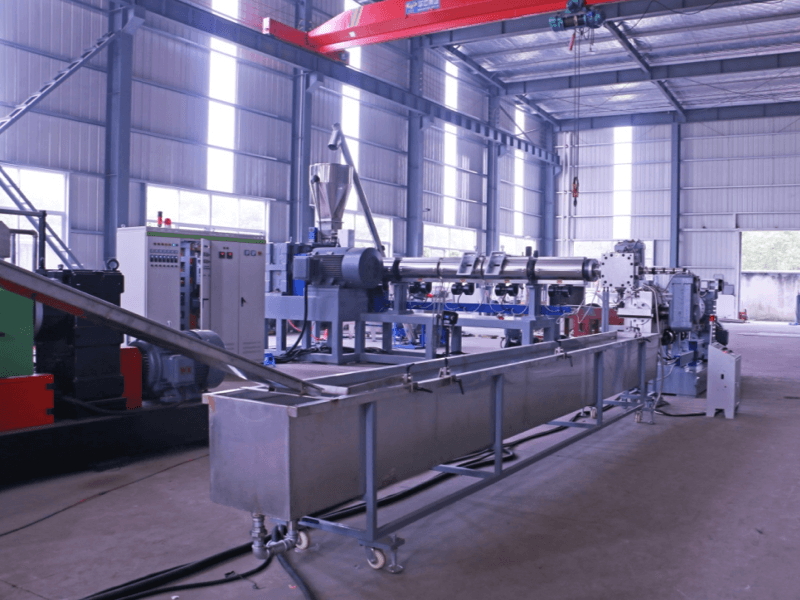

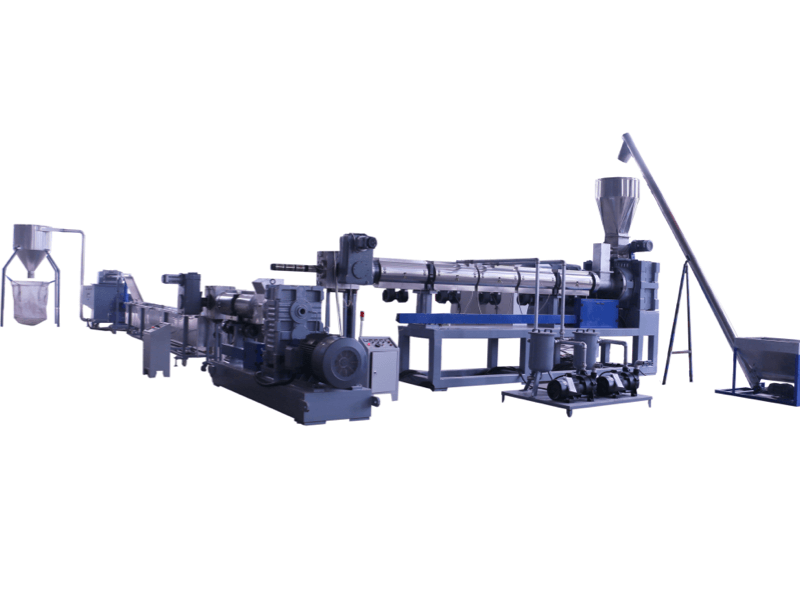

Machine pictures for reference:

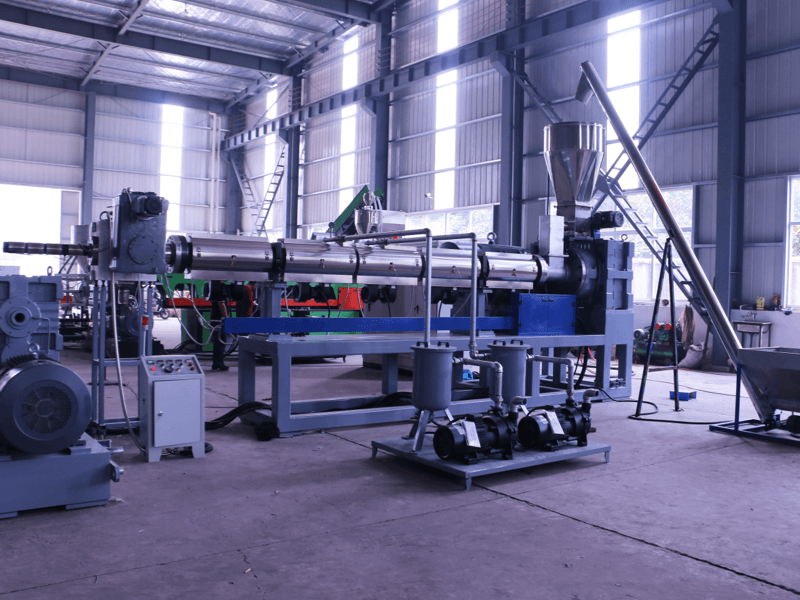

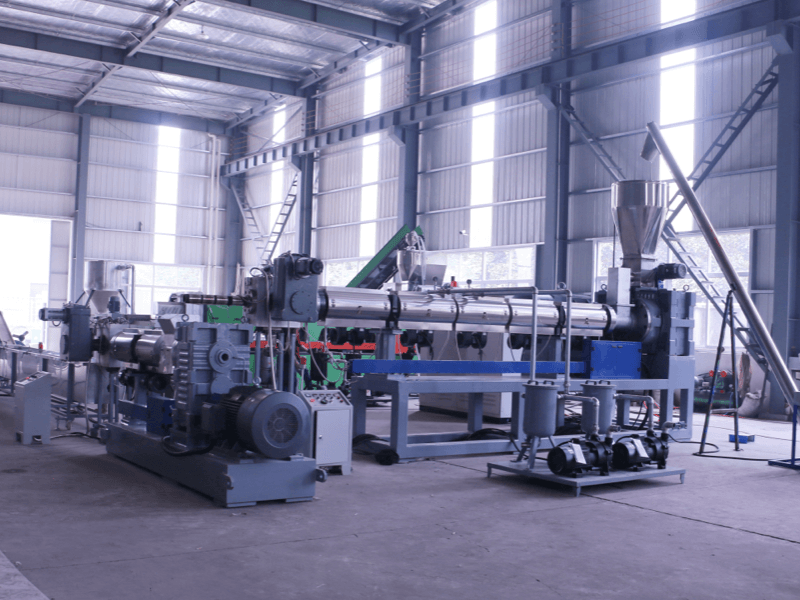

Screw feeder and extruder
Noolde cutting/strand cutting

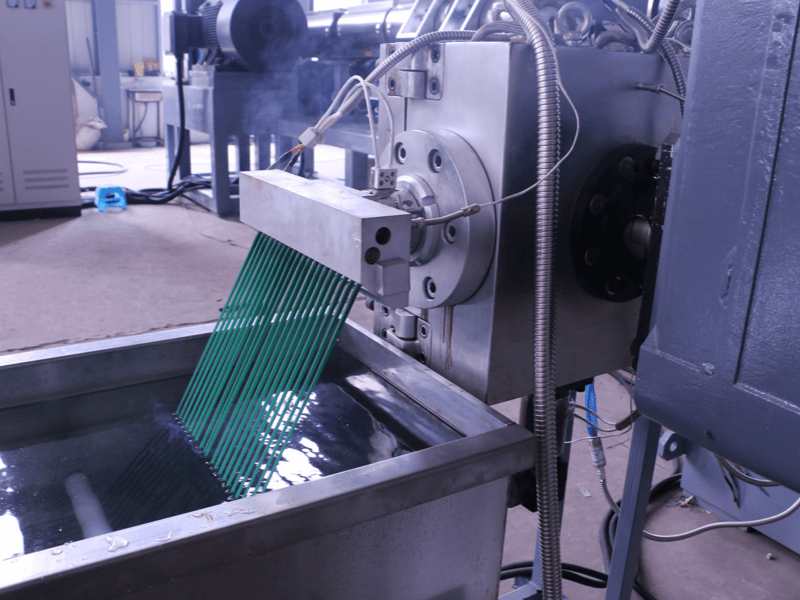

Cooling tank

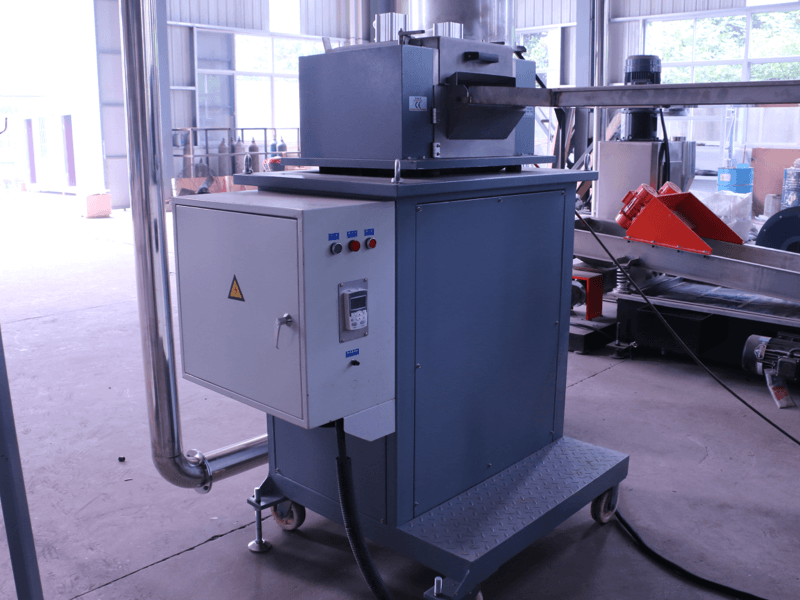

Pelletizer

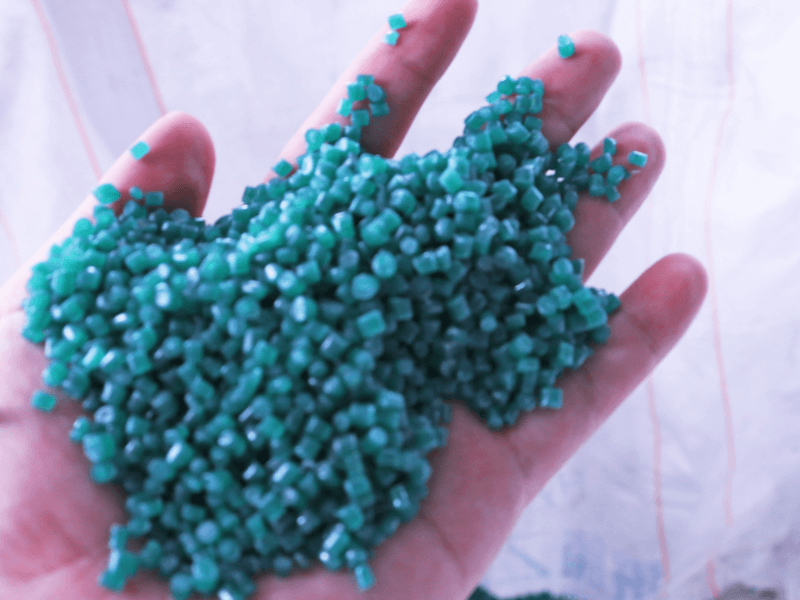

Final recycled pellets:
