SWP500
PLASTAR
The SWP series crusher is designed for grinding long plastic pipes and profiles. Overall heavy-duty steel welded cavity forms a fixed angle with the horizontal feeding hopper, and the angle of the feeding port is basically parallel to the ground. It is very convenient to feed longer materials such as small diameter PVC pipes and wide profiles. When there is too much material in the crushing chamber, the crusher will stop feeding until the material in the crushing chamber has been crushed. So there is no need to worry about material clogging.
Application:
The SWP series crusher is especially designed for small-diameter pipes and profiles. It is suitable for 16-450mm PE, PP, PVC, plastic pipes, wide door panels, and plates. When the crushing amount is large, it can be configured to feed Conveyor, suction fan, storage bin and dust removal system.
Machine models:
| Model | SWP 400 | SWP 500 | SWP 560 | SWP 650 |
| Rotary knife | 5 pcs | 5 pcs | 10 pcs | 10 pcs |
| static knife | 2 pcs | 2 pcs | 4 pcs | 4 pcs |
| Blade specification | 315*100*22mm | 415*100*22mm | 250*100*22mm | 300*100*25mm |
| Motor power | 15 KW | 18.5 KW | 22-30 KW | 37 KW |
| Output | 200-300 Kg/h | 300-350kg/h | 350-500kg/h | 450-650kg/h |
| Dimensions | 1850*900*1630mm | 1850*1050*1680mm | 2050*1150*1730mm | 2400*1350*1850mm |
| Weight | 1200kg | 1300kg | 1600kg | 2100kg |

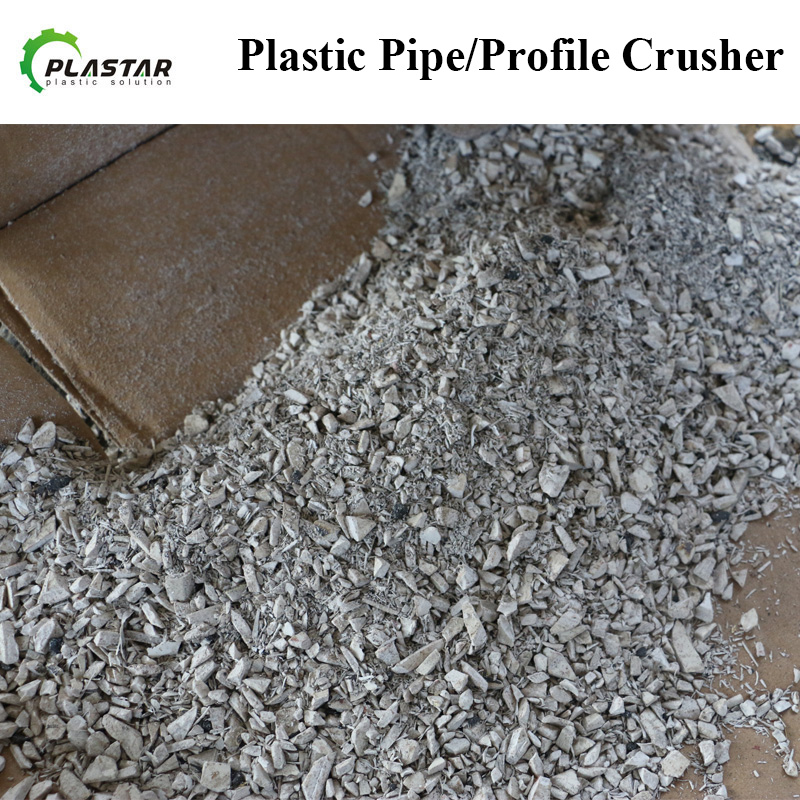

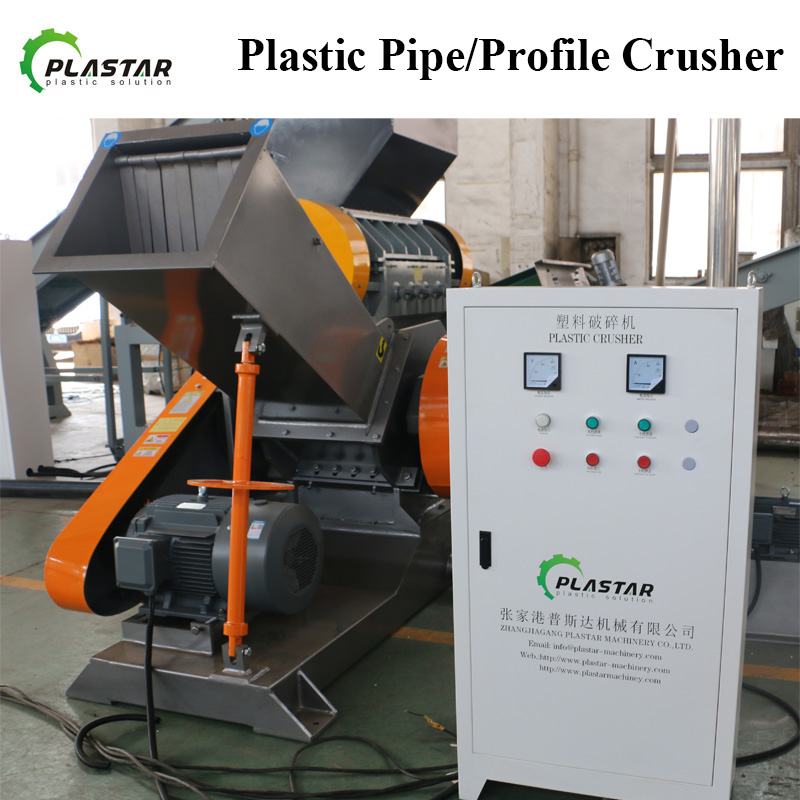

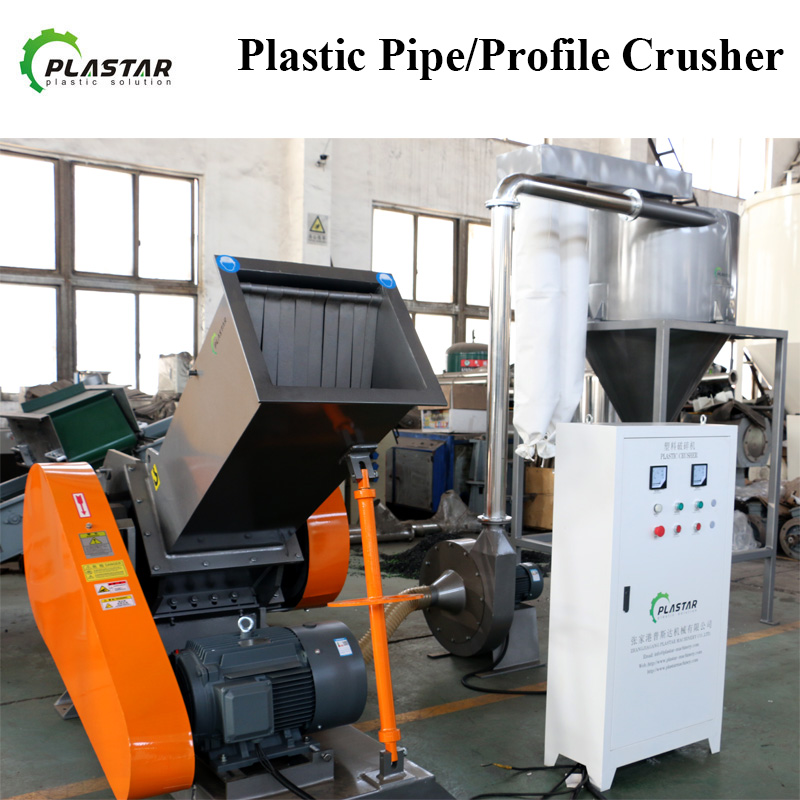

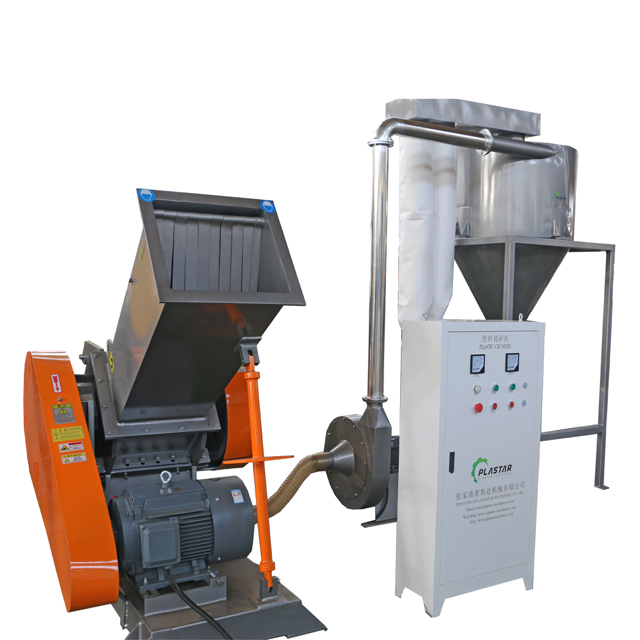

Machine pictures for reference:
