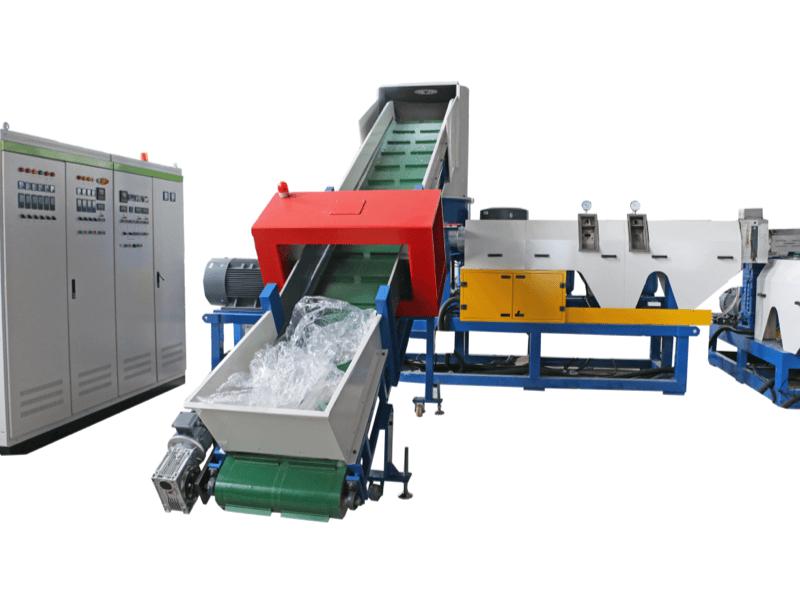

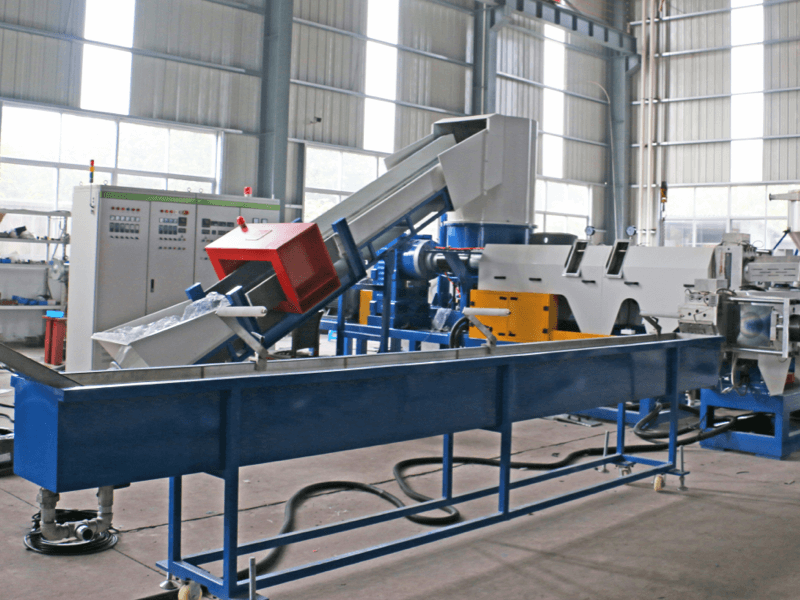

Plastic Pelletizing Line with Compactor

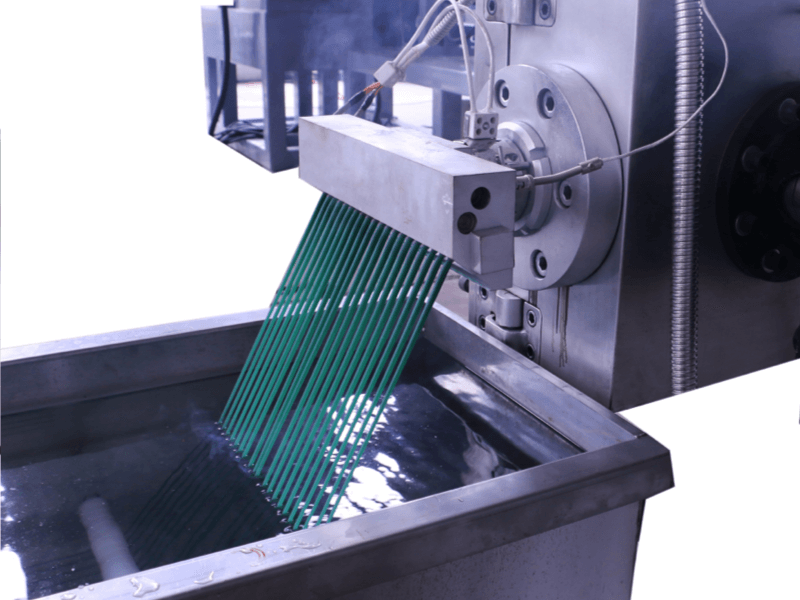

Strand cutting waste plastic pelletizing line

This type of strand cutting pelletizing line with compactor is suitable for PE film, non-woven fabric, agriculture film, shopping bags, ton bag, and part of PP rope, raffia etc. It is a efficient pelletizing machine combines the function of crushing, compacting, plasticization and pelletizing all in one single step, the final products are clean dry high quality pellets and granules which can be directly used in production lines for film blowing, plastic injection or blowing etc.

Technical specifications:

*Bigger capacity model is also available based on your request.

Features of plastic compacting pelletizing recycling machine:

1. Combine crushing, compacting, and pelletizing steps in one system, save labor cost.

2. Higher efficient feeding, which is suitable for plastic film, filament, raffia, scraps, foaming material.

3. Lower energy consumption with higher production output

Working principle:

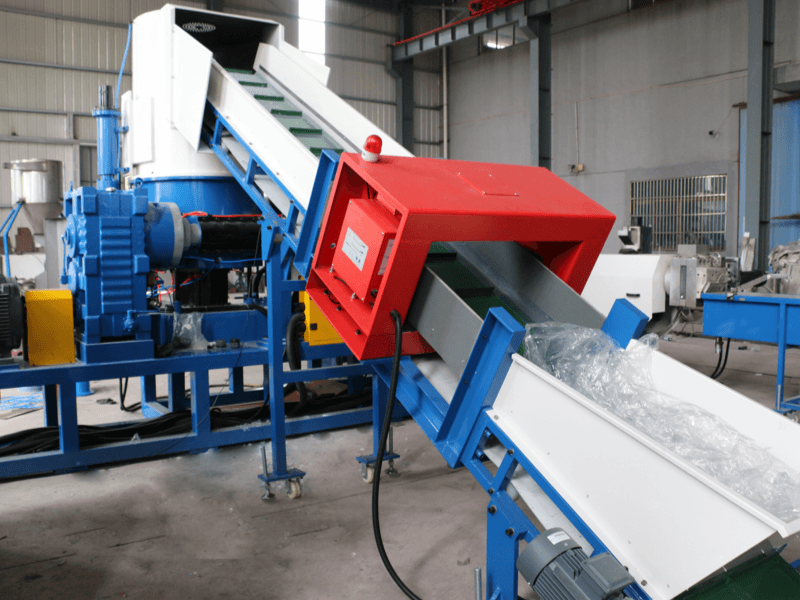

1,Feeding: as standard design, the raw material plastic film, raffia, bags, fabric will be conveyed into the compacting room by belt conveyor, metal detector can also be installed on the conveyor, and can interlock with control system to warn and stop the feeding if raw material contains metel, by thus, the compactor blades and extruder screw can be protected.

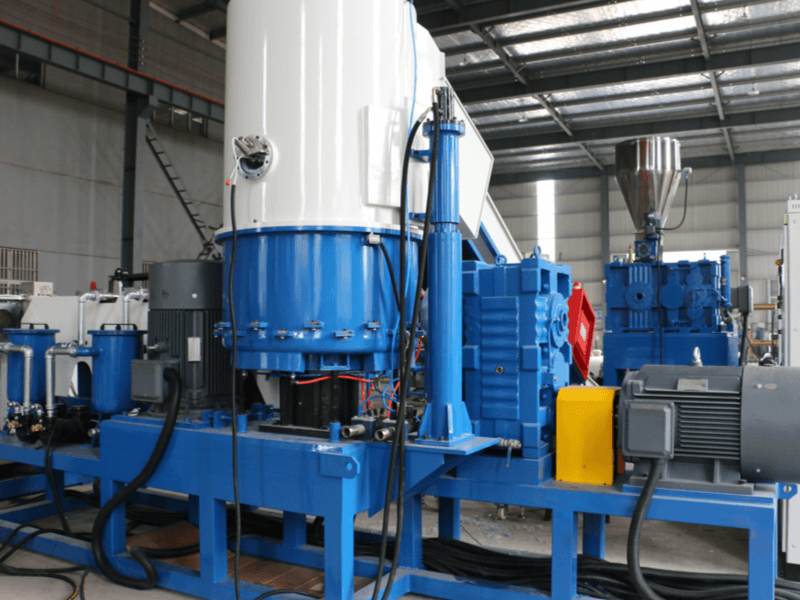

2,Shredding and compacting: the rotary blades of compactor will run very fast speed to cut the incoming material into scraps, besides this, friction heating which are produced by high speed rotation blades will heat and shrink the material scrap into small granules, by thus, the film or bags’ size are extremely reduced, so more material can be fed into the extruder, the extrusion capacity can be guaranteed.

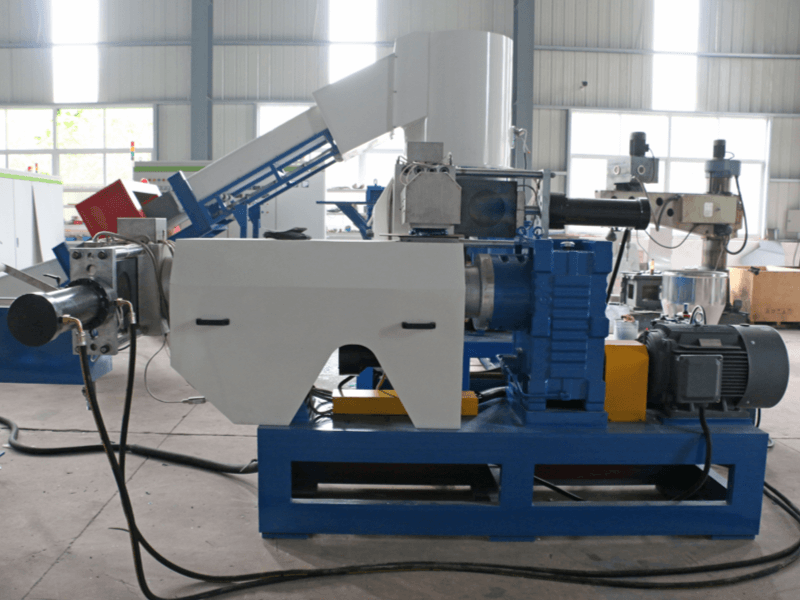

3, Plasticization and degassing: A specialized single screw extruder is applied to melt the pre-compacted material, the plastic scraps will be well melted, plasticized in the extruder. According to customer’s raw material situation , we can equip the extruder with vacuum degassing or natural degassing device.

4, melt filtration: we use single plate double working station screen changer, if your raw material is very dirty, we can use double stage extruder and filter system to remove the impurities thoroughly. And we also provide option for using no mesh screen changer, customer doesn’t need to use screen mesh.

Delivery, shipping and after-sales service:

1. Delivery time: Usually, the delivery time of PLASTAR recycling pelletizing line is within 50 working days.

2. Shipping: our recycling line can be shipped by LCL or whole containers, train, etc, the recycling pelletizing machine will be tested before delivery.

3. Overseas installation and training is available

4. 24 hours online questions&answers.
