Plastic Agglomerator Machine

The Plastic agglomerator is used for granulating waste thin thermoplastic films with wall thickness less than 3 mm. such as, high and low density polyethylene(HDPE/LDPE/LLDPE), polypropylene(PP) and polystyrene(PS), usually, the customer usually use it for the recycled film material, after crushing washing drying, the recycled PP/PE film scrap still contains 5-20% mositure, which will cause big problem for the next procedure of extruding, at the same time, the recycled film scrap takes relatively large space, so it's better that we can have a machine which can reduce the size of recycled scrap and evaporate the mositure, that's why the agglomerator comes.

Availability:

Quantity:



Inquire Add to Basket

Model:
PSD800
Brand:
PLASTAR

Product Description

Application

The Agglomerator agglomeration machine can also be used for a wide range of raw materials, such as plastic PE film, PE bags, PP woven bags, PP non-woven, sheet, flakes, fiber, PA nylon, PET Fabric & Fiber textile material, and other plastics.

Function

The Agglomerator machine can directly make soft material into granules. And this machine can reduce material humidity.

Agglomeration machine can improve the quality of your product and increase your profit.

Features:

1. Agglomeration machine working theory is different from ordinary extrusion granulating line, no need electric heating, and can
work whenever and wherever possible.

2. Strong design of double bearing for holding the main shaft.

3. High performance blades,

4. Water flushing automatically.

Our factory(PLASTAR) has more than 20 years experience in manufacturing plastic agglomerator densifier compactor machines, whichcan be manufactured according to your requirements.

Specification

GSL Series mainly used for PE, LDPE, HDPE, LLDPE, PP film, woven bag, non-woven bag, foam, etc.

Model	GSL100	GSL200	GSL300	GSL500	GSL800	GSL1300	GSL1500
Volume (L)	100L	200L	300L	500L	800L	1300L	1500L
Main motor (kw)	37	45	55	90	132	200	250
Output (kg/h)	60-100	100-150	150-200	300-400	500-600	800-900	900-1200

GHX Series used for PET, PA, nylon, yarn, fiber to produce popcorn material

Model	GHX100	GHX300	GHX400	GHX500
Volume (L)	100L	300L	400L	500L
Main motor (kw)	45 or 55	75 or 90	110 or 132	160 or 200
Output (kg/h)	100-200	200-350	400-500	600-1000

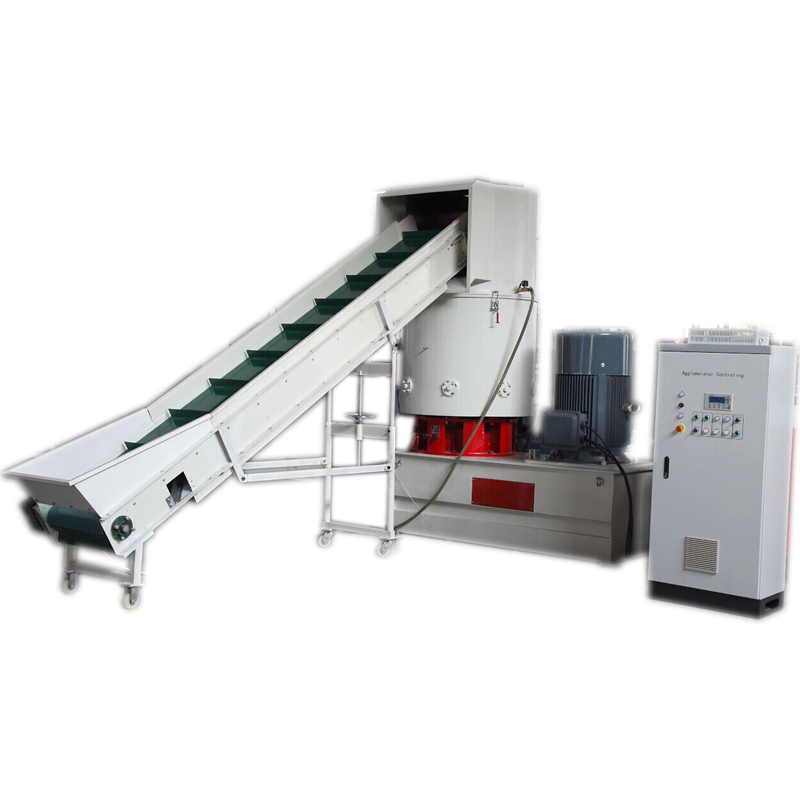

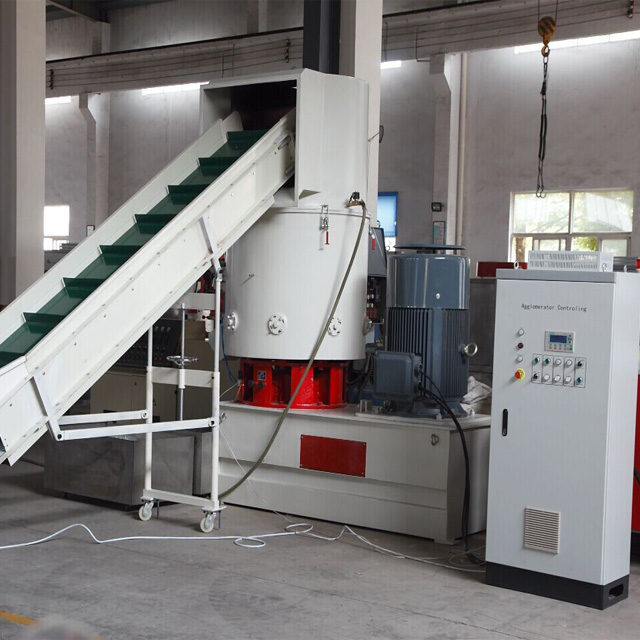

Plastic Agglomerator Machine Pictures for reference:

plastic agglomerator 1

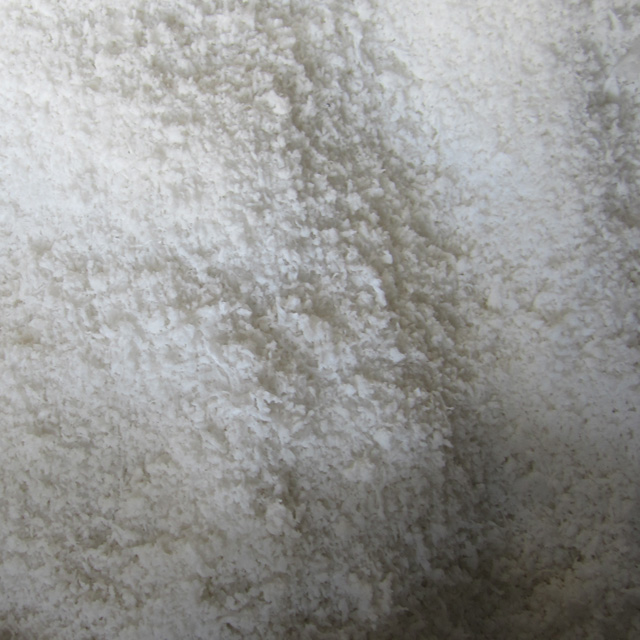

After agglomeration:

plastic agglomerator 2

Plastic agglomerator agglomerator machine plastic agglomerator machine
