Peek PEI TPEE PPSU PSU PE Rod Stick Bar Extruder Extrusion Line

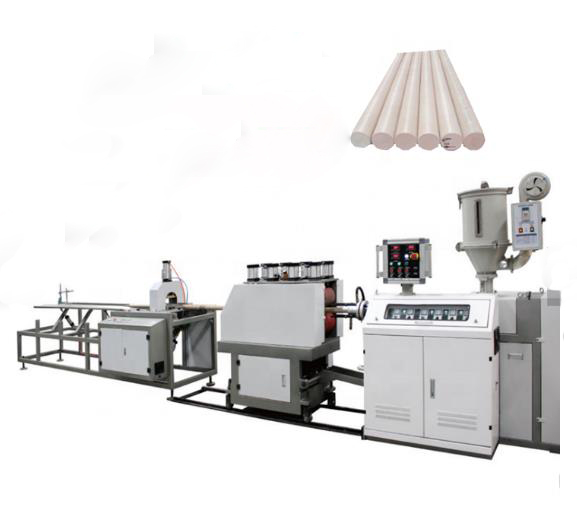

This production line is composite of extruder, machine head, cooling sizing mould, heat-insulating plate, braking device, cutting machine, bracket, etc.

Usually the extruder screw diameter is φ45~90mm. It is mainly based on the bar diameter to select the extruder model. Meanwhile, it is better that the extruder screw diameter is smaller than the bar diameter for easy extruding operation. For example φ45 extruder can produce bar of diameter φ30~200mm.

Different screw types are designed for different material. Progressive screw is for PE, PVC, ABS, PC, polysulfone, PPE, etc. Mutation screw for PP, PA,PU, POM, PTFCE, etc. Screw L/D=20~28, E=2.5~3.5, screw head is half round.

It is optional to place a filter plate between the machine head and the screw to improve the plasticization effect. But for glass fiber reinforced bar, the filter is no needed.

PEEK, a semicrystalline thermoplastic, is known for mechanical and chemical resistance at high temperature.  PEEK  is extremely tough and is often used in aerospace, biomedical, automotive and other demanding applications. its light weight, selflubricating properties , due to the very good processing properties, can be filled with carbon fiber, such as molybdenum disulfide to further improve the lubricity and mechanical strength. PEEK plastic broad application space comes to high-tech industries in aviation, machinery, electronics, chemical, automotive , etc., may be required for the manufacture of high mechanical parts such as gears, bearings, piston rings, support rings, seals ( letter ) , valves, wear rings.
high-performance natural virgin materials extruded plastic PEEK rod bar
PEEK Bar/Stick/Rod products have been widely used to oil processing field, electronic industry, chemical plant area and food processing machine etc. for its good chemical resistance, easy processing and other advantages. And PEEK has a stable position in plastic extrusion industry that other material can not take the place of it. With the rapidly development of world economy, there is a huge demand of PEEK Bar/Stick/Rod , so PEEK  products will be very popular.

We are a professional PEEK Bar/Stick/Rod  extrusion line manufacturer in China, we have overcame lots of difficult and researched high precision , high output and excellent quality PEEK Bar/Stick/Rod  extrusion line, and we are also the first supplier of PEEK Bar/Stick/Rod  production line in China.

Applied material: PP PA ABS POM PEEK PPSU PEI TPEE PE ect.

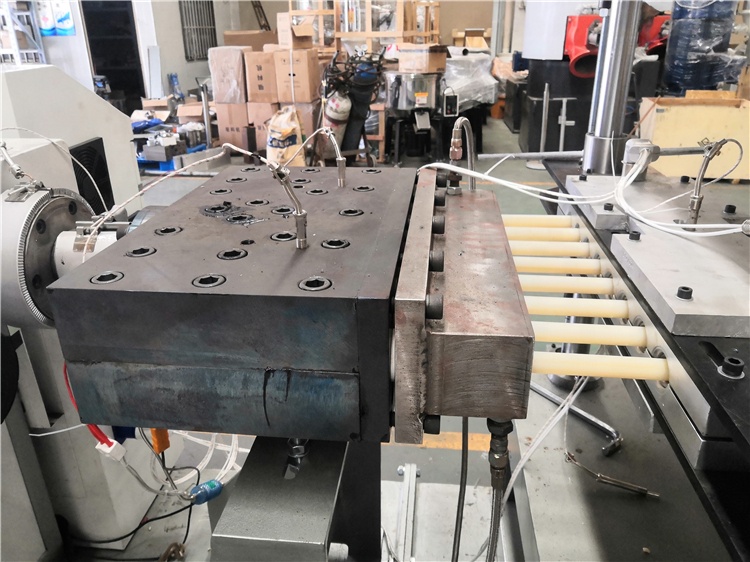

Machine pictures for reference:
