PVC Waterstop Extrusion Production Line

PVC Waterstop Extrusion Machine

 Water Stops are mainly used in concrete structures or various structural projects that require water retention, to provide internal waterproofing for these structures, because the material is PVC, its own material is soft and elastic, easy to cut, the material is cheap, It is widely used in various public constructions such as bridges, reservoirs, infrastructure for people's livelihoods, such as residential building structures, industrial construction such as chemical plants, wastewater treatment plants…etc.

The PVC Water Stop extrusion production line developed by PLASTAR is not only easy to operate, but also has excellent performance and output. The special design of the die head can also meet the customers' requirements for different sizes in the future, with high stability.

Material: PVC

Application: Waterstops are mainly used in concrete structures or various structural projects that require water retention, to provide internal waterproofing for these structures.

Future: easy to operate, but also has excellent performance and output. The special design of the die head can also meet the customer’s requirements for different sizes in the future, with high stability.

Output: 180-250 KGS/HR

Key features of our PVC waterstop production line include:

1. Screw Feeder: Ensures consistent and accurate feeding of raw materials into the extruder.

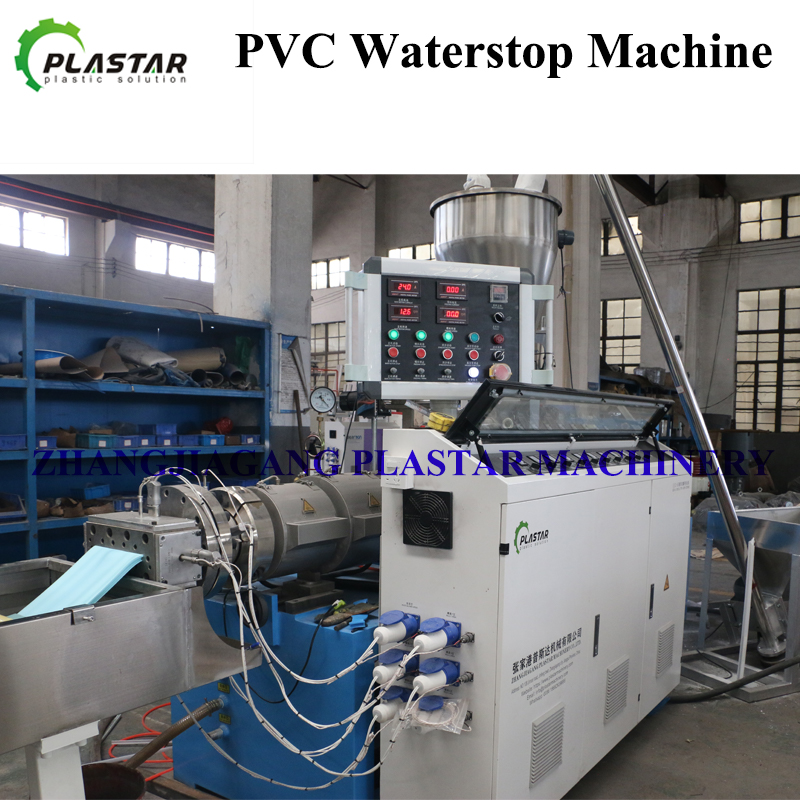

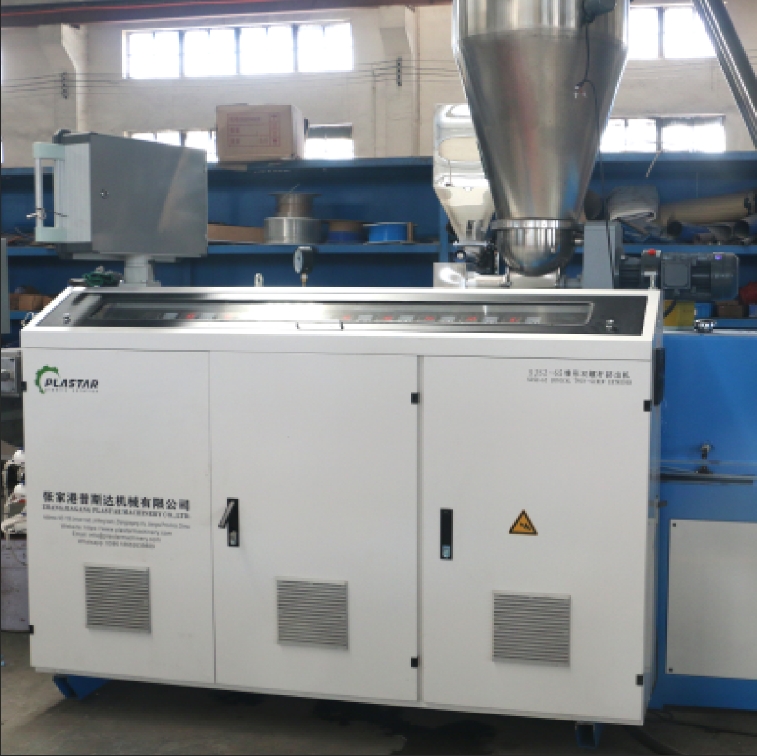

2. Extruder: Equipped with advanced technology for high-performance extrusion, producing uniform and reliable PVC waterstops.

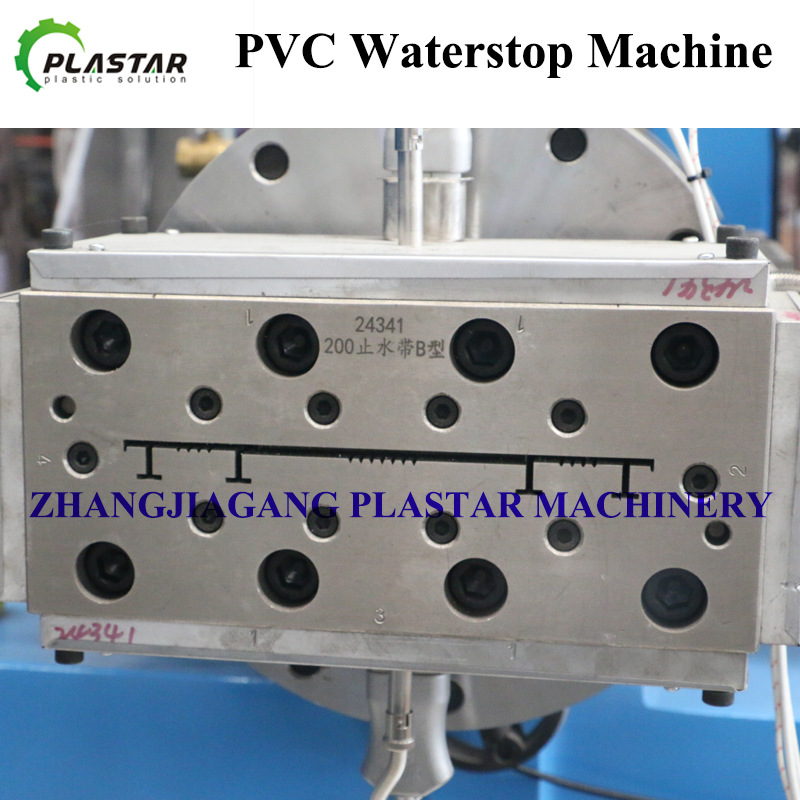

3. Mold: Customizable molds to create different profiles of waterstops, ensuring versatility.

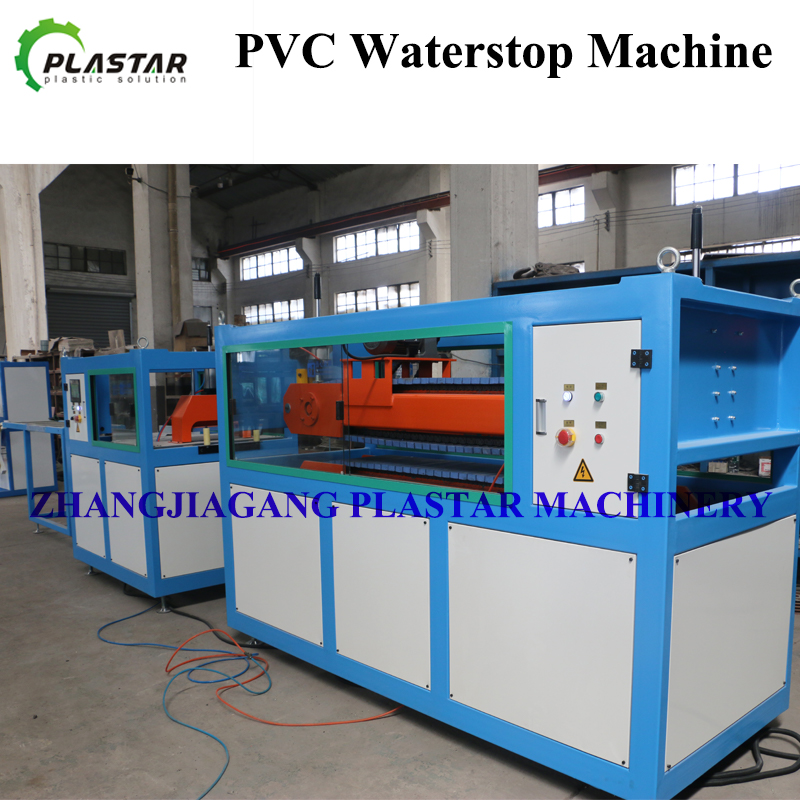

4. Haul-Off Machine: Provides stable pulling and accurate control of the extruded product.

5. Cutter: Precision cutting for clean, exact lengths of PVC waterstops.

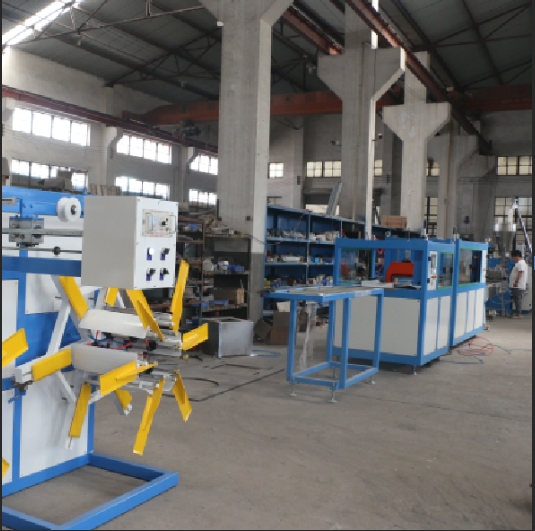

6. Winding Machine: Efficiently winds the finished product for easy handling and storage.

Our machines are capable of producing all three main types of PVC waterstops:

• Center Bulb Waterstop: Designed for expansion joints to accommodate multi-directional movement.

• Flat Waterstop: Ideal for construction joints with minimal movement.

• Ribbed Waterstop: Excellent for high water pressure areas due to its superior grip to concrete.

Additionally, our machines can produce waterstops with widths ranging from 150mm to 400mm, catering to various project requirements.

By using our state-of-the-art extrusion line, you can ensure the production of durable, reliable, and high-performance PVC waterstops for any construction need.

The PVC waterstop extrusion line includes:

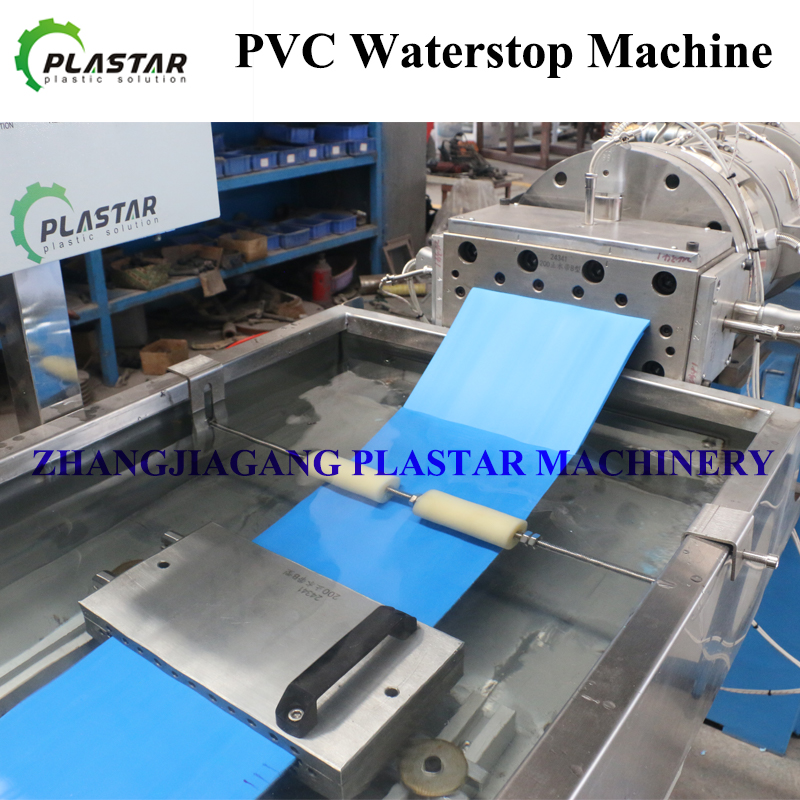

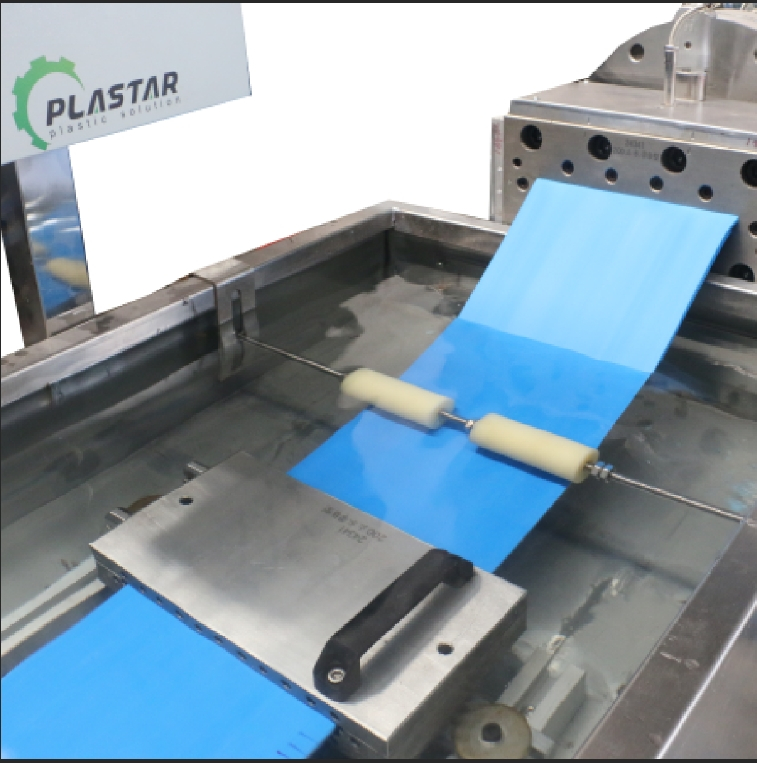

PVC waterstop Extrusion Line Pictures for reference:
