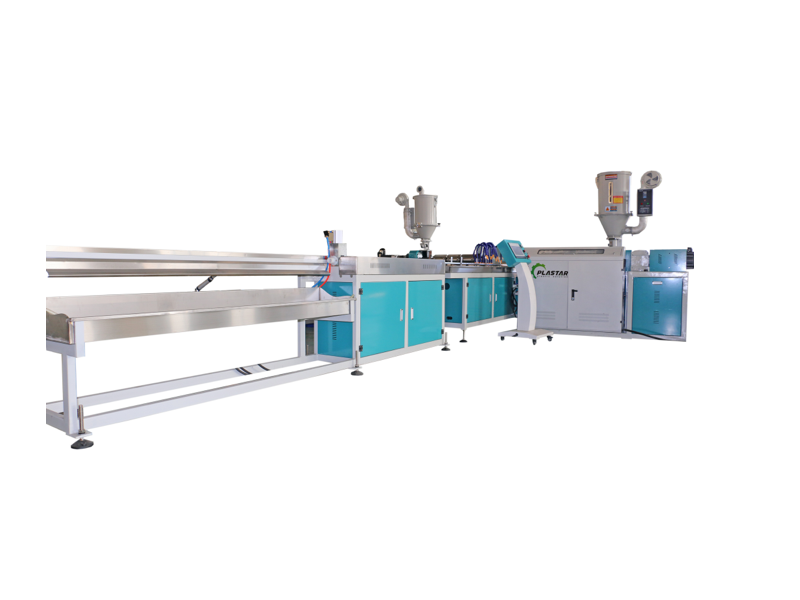

PVC spiral hose extrusion production line
1.This line is designed to produce PVC spiral helix hose.
2.It includes two extruders, forming unit,water bath, cutter, winder.
3.The produced spiral hose is widely used in conveying gas, liquid and powder and medical field.
The PVC spiral hose extrusion line main models:
Extruder model | First extruder | SJ55/30 | SJ65/30 |
Second extruder | SJ45/25 | SJ65/25 | |
Diameter range(mm) | Ø 25- Ø50 | Ø64- Ø 150 | |
Haul-off speed(m/min) | 2-10 | 0.2-2 | |
Max. output (kg/h) | 20-40 | 40-75 | |
Total installed power(kw) | 31 | 58 | |
Actual power consumption(kw) | 21 | 40 | |
Overall dimension LxWxH(m) | 15x4x2 | 16x5x2.5 | |
Overall weight(kg) | 3.2ton | 4.3ton | |
Process Flow of PVC helix hose machine:

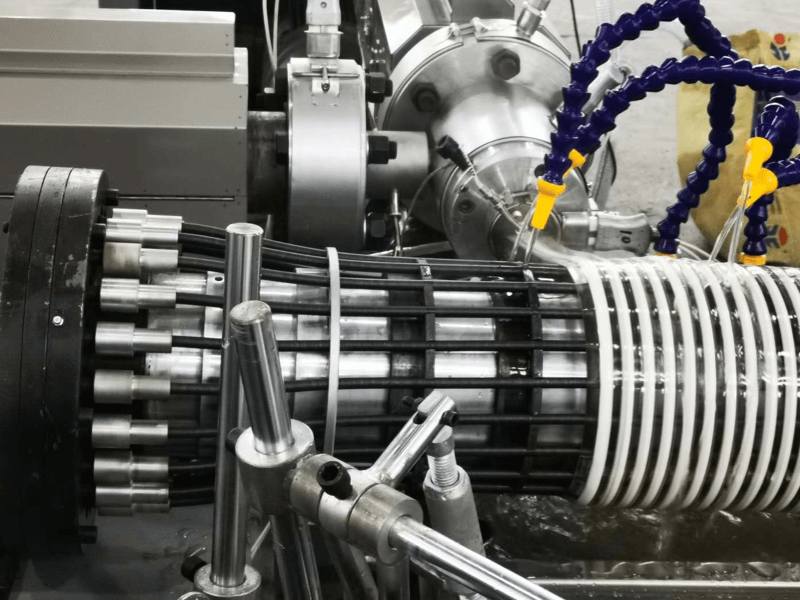

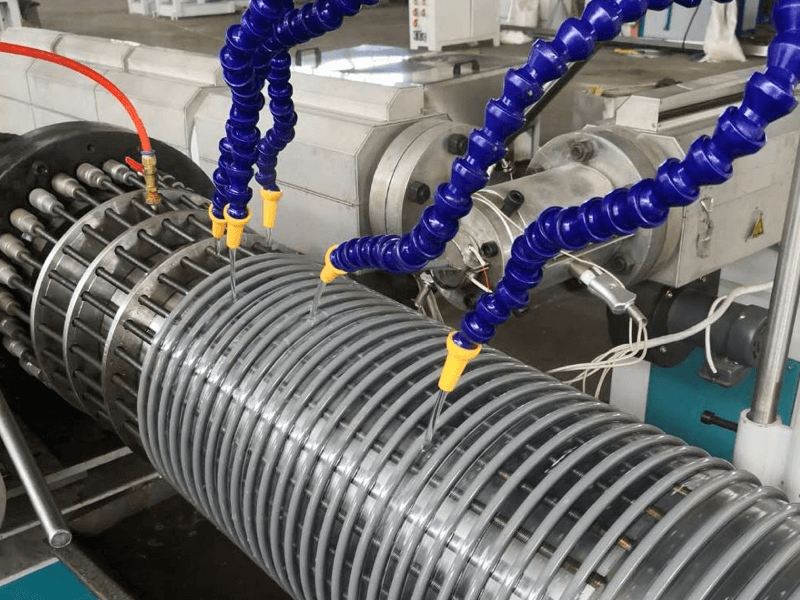

Single screw extruder + Single Screw extruder → Co-extrusion mould → Forming machine → Water cooling tank → Cutter&Stacker

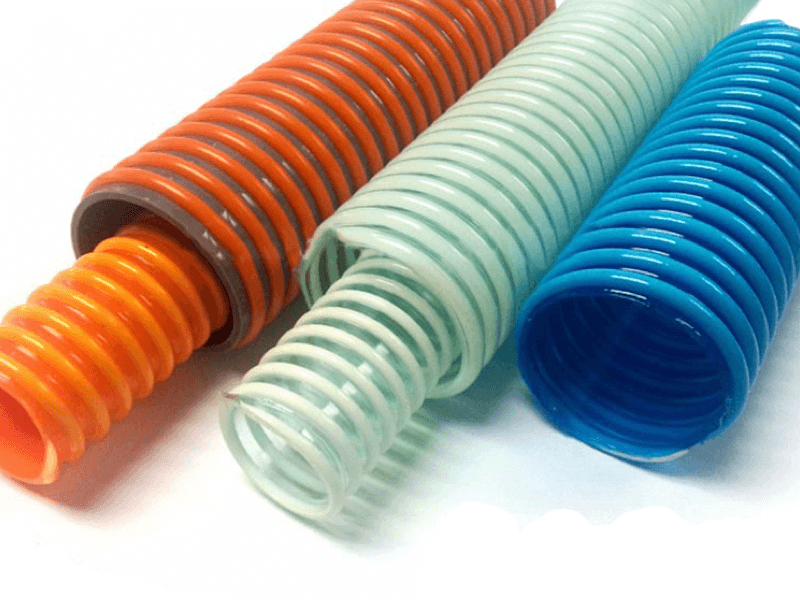

Wide Application of PVC Spiral Suction Hose:
1.Suction and drainage, medical hose, gas transmission, dust extraction, agricultural irrigation, sewage drainage equipment
2.Vacuuming and suction equipment Vacuuming powder particles Oil
3.Sand suction air pump pipe for shipyard
