PVC corner bead extrusion line
Our PVC profile extrusion line could produce PVC window profile, door frame, wall panel,board, ceiling, and corner bead profile etc. This machine also could produce wood plastic profile ( WPC).
This extrusion equipment is designed for extruding PVC corner bead, which is a kind of PVC profile particularly designed for protecting corners of wall, door and window. As a replacement for the traditional methods to repair wall corner, it has been extensively used for construction, decoration, and wall protection. Upon clients' request, we can equip punching, printing or other additional equipment for the PVC profile extrusion line.
Technical Parametes:
Model | Mold | Max. extrusion capacity | Extruder motor power |
SJZ51 | 4 cavity mold | 80-120kg/h | 18.5kw |
SJZ55 | 6 cavity mold | 120-160 kg/h | 22kw |
SJZ65 | 8 cavity mold | 180-240kg/h | 37kw |
The whole corner bead/gurad bead profile extrusion line includes the following machines:
1. Screw feeder
2. Conical Twin Screw Extruder
3. Extrusion Mold ( we can design the mold according to your different shape requirement)
4. Vacuum Calibration Table
5. Haul Off machine
6. Punching machine
7. Stacker
8. PVC Mixer ( for raw material preparation)
9. Crusher and Milling Machine ( for recycling the waste and reusing for profile production)

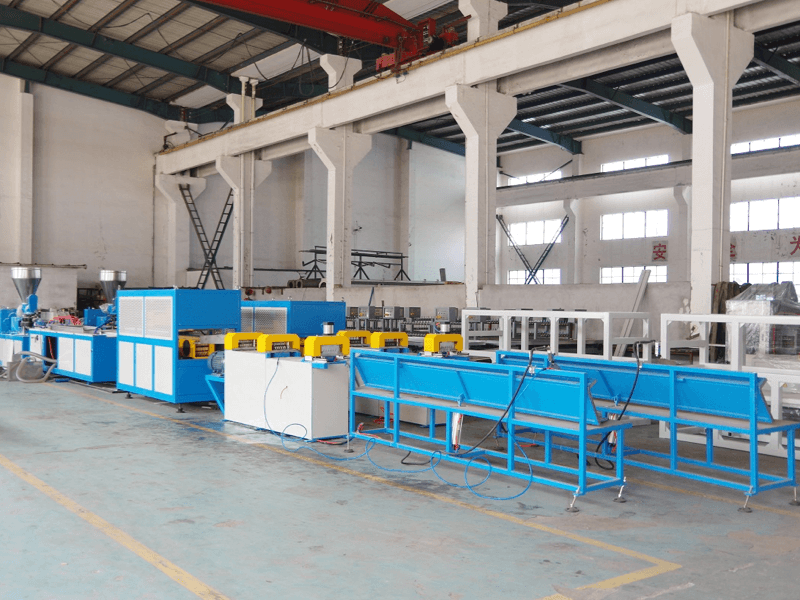

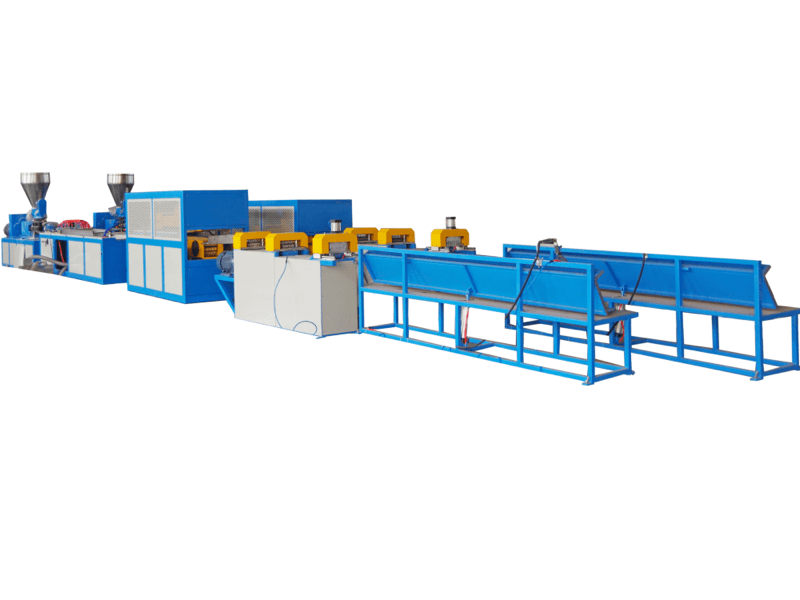

PVC Corner Bead Extrusion Line pictures:

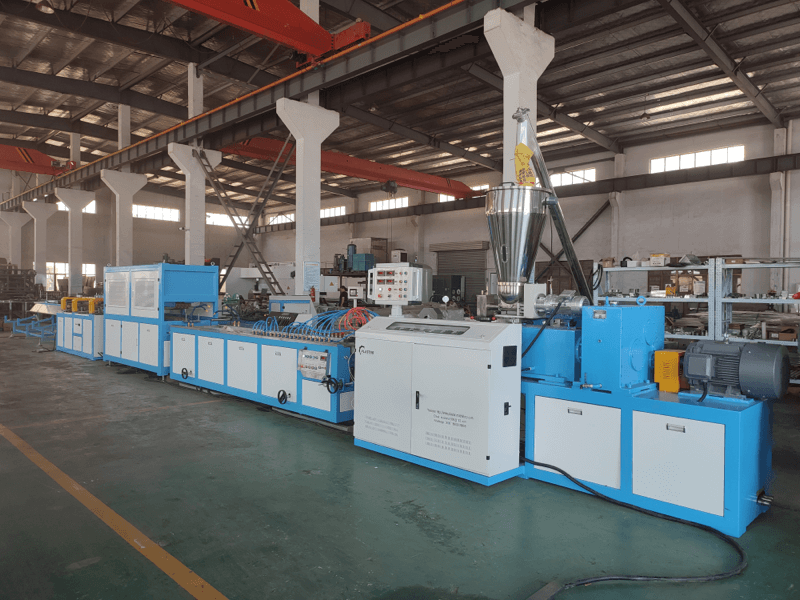

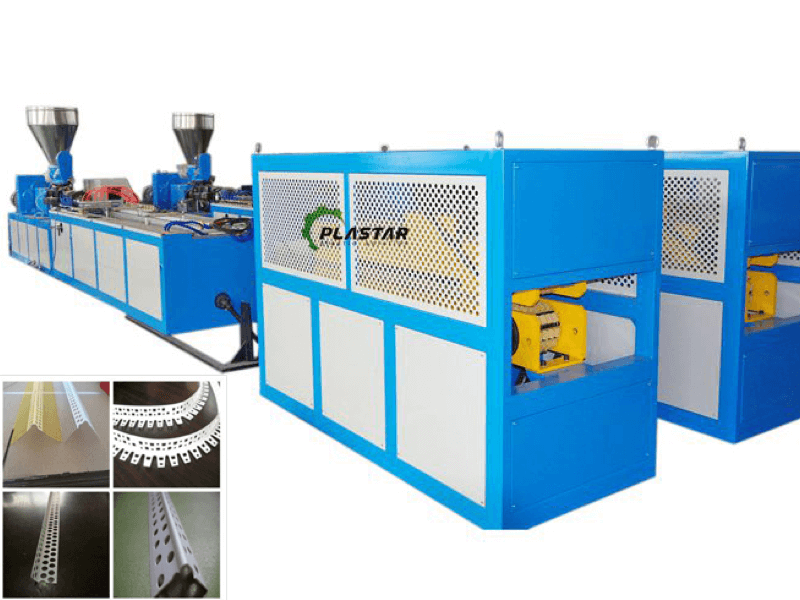

6 Cacity corner bead line

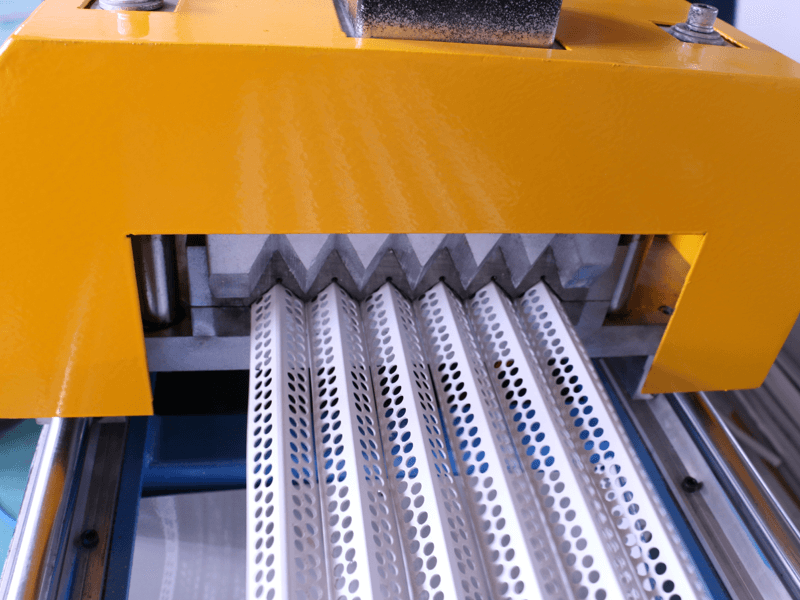

Punching machine
