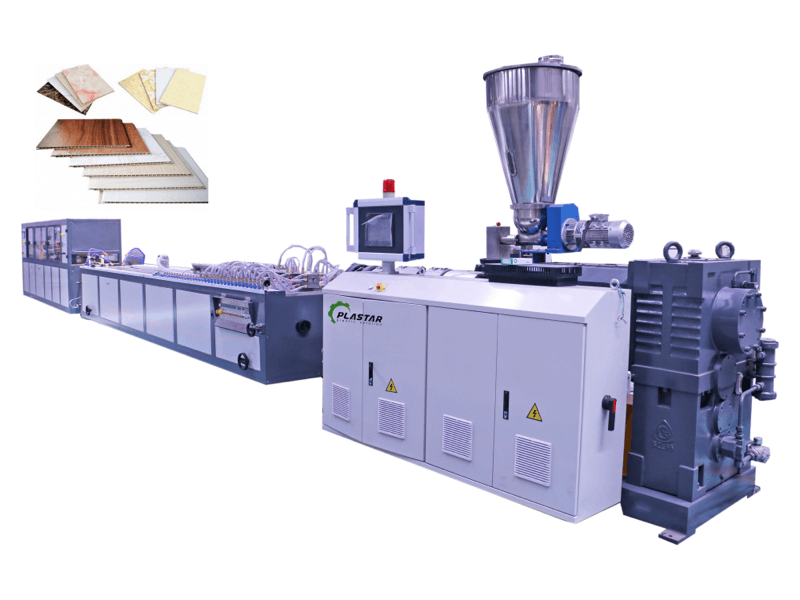

PVC ceiling wall panel production extrusion machine
PVC Ceiling Panel Extrusion Line is used to manufacture PVC ceiling panel or wall panel , the width of PVC ceiling panel can be 200 mm , 250 mm , 300mm, 400mm etc . The surface of PVC wall panel can be treated by lamination, hot stamping or double color printing . By switching mold , machine can produce different shape of PVC wall panel.
Advantage of PVC ceiling panel production line:
1.Best brands , ABB or Delta inverter , Schneider eletric , Omron temperature controller , Siemens motor.
2.We supply whole production line with turnkey solotions.
3.High capacity.
4.Best after-sale service.
5.One-stop service.
The required raw material list for making PVC ceiling panel.
Raw Material | Function |
1. PVC Resin SG-5 | Synthetic plastic polymer |
2. CaCO3 (calcium powder) | A white mineral used as filler |
3. Stearic acid | Used as PVC heat stabilizer, prevents coking, lube lubricant, plasticizer |
4. PE wax | Lubricant & improves properties of finished wall panels |
5. Whitening agent | Yellowish-green powder, use to brighten & whiten PVC plastics |
6. Titanium dioxide (Ti02) | A pigment that improves the panels UV-resistance, opacity, gloss & whiteness |
7. CPE (Chlorinated Polyethylene) | Improves the PVC ceiling’s weathering resistance, flame retardance and flexibility. |
Machine models of PVC ceiling panel extrusion machine:
Model | SJZ55/110 | SJZ65/132 |
Applicable width | 250-300mm | 400-600mm |
Extruder | SJZ55/110 | SJZ65/132 |
Capacity | 800-1200m2/24hours | 1600m2/24hours |
PVC Plastic Ceiling Panel Production line includes
No. | Machine Name | Quantity |
1 | Screw feeder | 1 set |
2 | Conical twin screw extruder | 1 set |
3 | Mould | 1 set |
4 | Vacuum calibration table | 1 set |
5 | Traction machine | 1 set |
6 | Automatic cutting machine | 1 set |
7 | Stacker | 1 set |
8 | Hot stamping (optional) | 1 set |
9 | High speed PVC mixer (optional) | 1 set |
PVC Ceiling Panel Extrusion Line Pictures:

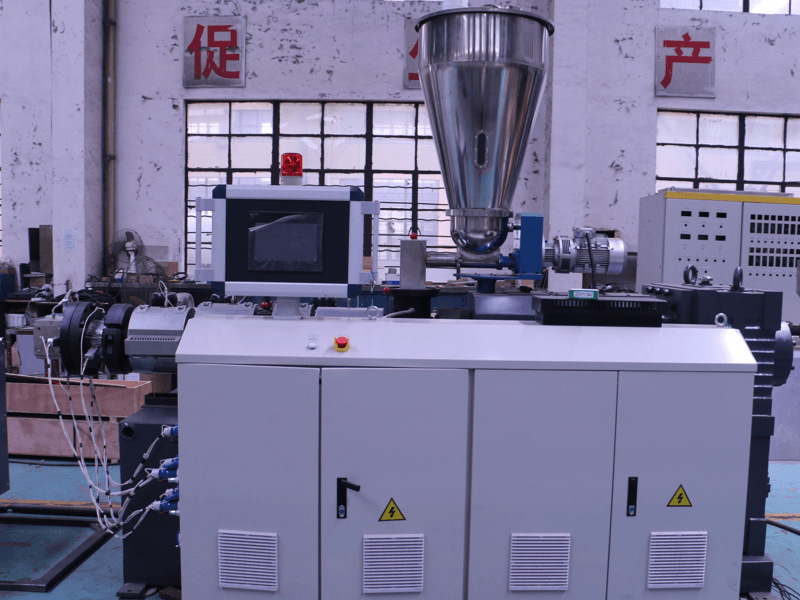

Extruder

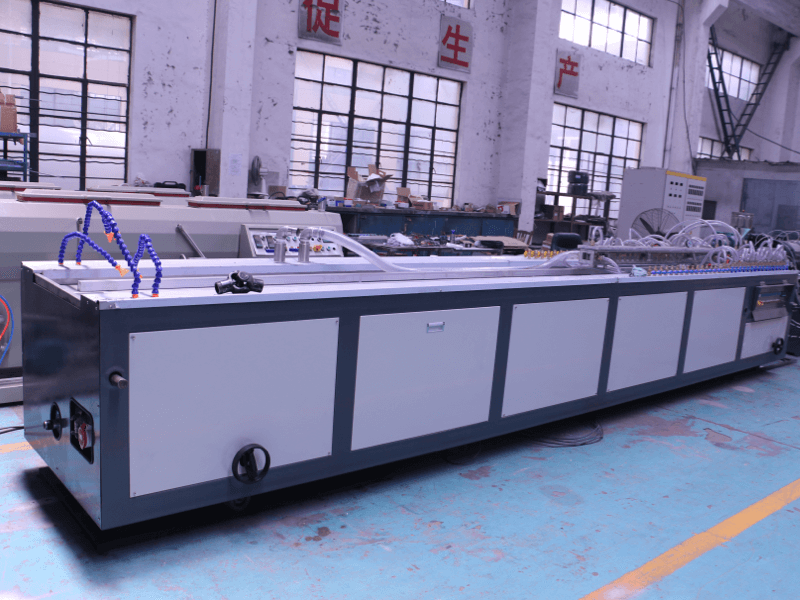

Vacuum Calibration Table

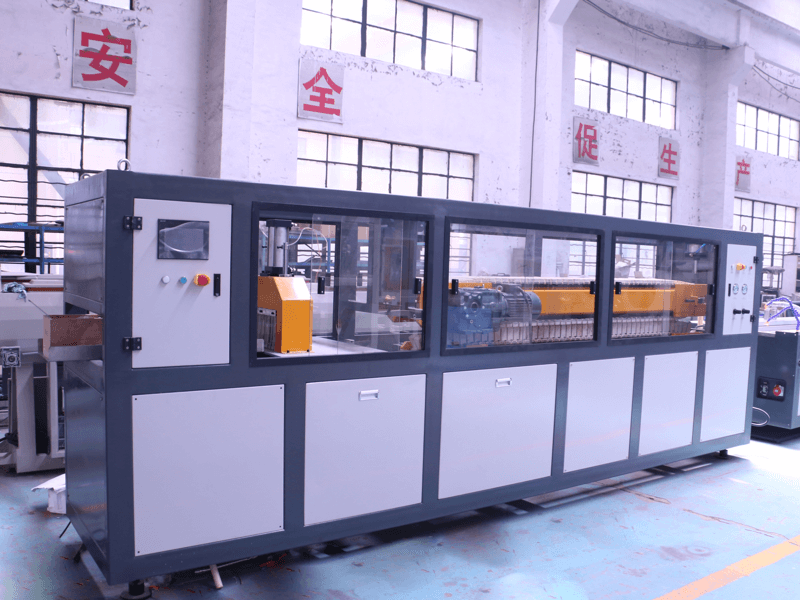

Haul off&cutter

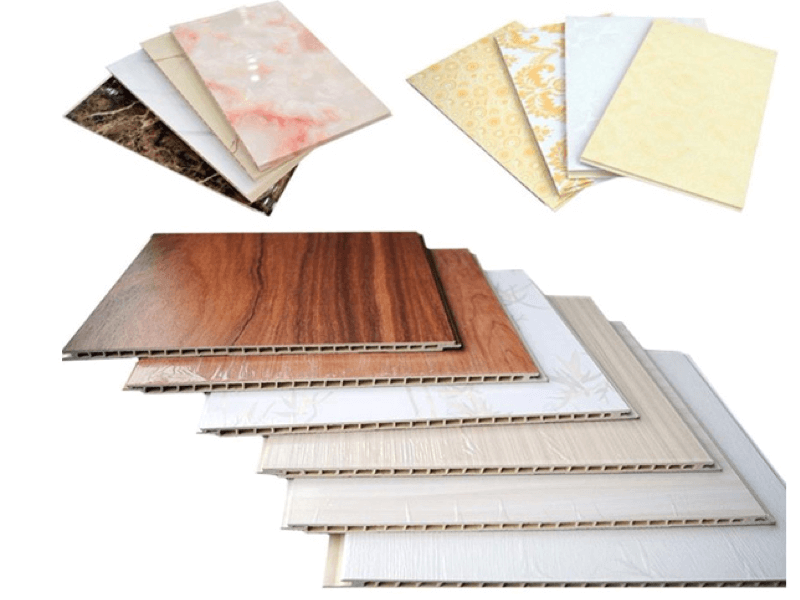

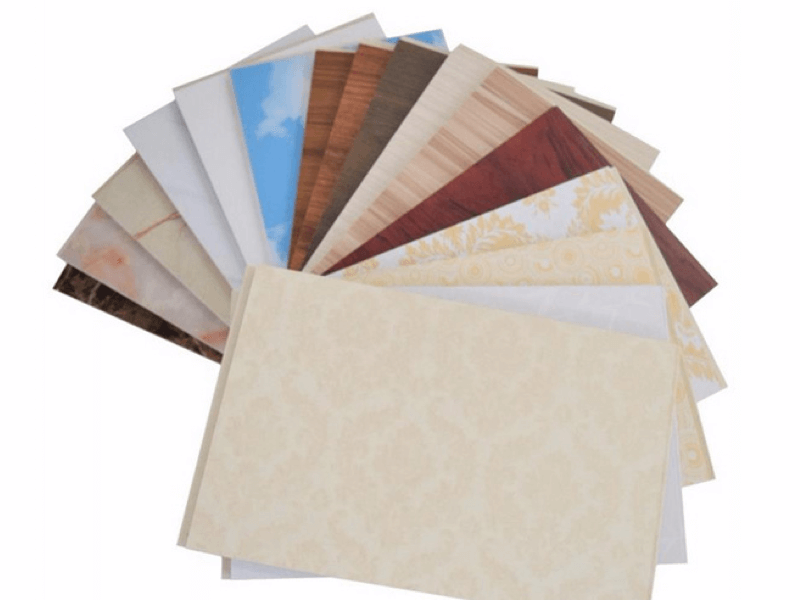

Final PVC Ceiling Panel Pictures:
