PP PE PVC Plastic Weld Rod Filament Extrusion Production Line

This PP PE PVC plastic welding rod making machine is specially developed for the production of high quality PE/PP PVC electrode, the electrode roundness is good, no bubbles inside, the machine has high production efficiency.

The welding rod production line adopts melt pump system, the control system is PLC with the closed-loop system, precise extrusion pressure and speed ensure the high accuracy and the internal quality of the electrode.

Raw material:	PP PE PVC
Rod dia.:	3-6mm
Availability:

Quantity:



Inquire Add to Basket

Model:
PSD50
Brand:
PLASTAR

Product Description

Plastic PP PE ABS PVC Welding Rods Making Machine Welding Strip Extruder

The PP PE PVC plastic welding rod making machine is used to produce PP, PE, LDPE,HDPE, PVC etc plastic welding rod.

The finished plastic welding rod is widely used in plastic chemical anticorrosion, geomembrane liners, welding for plastic container, pipe /tube,sheet, car bumper and other electroplating equipment.

1)The welding rod making machine production line is composed of Single Screw Extruder, mould, cooling tank, haul-off mahcine, double disk winder,etc.

2)The mould can be :round, double round/double stand, oval, triangle etc for making pp welding rod. 3)The welding rod making machine is used in producing PP, PE, PVC etc plastic welding rod. The PP welding rod is widely used in plastic chemical anticorrosion, geomembrane liners, welding for plastic container, pipe /tube,sheet and other electroplating equipment.

4) The welding rod manufacturing machine has high output, low price, simple operation, good working condition.

Plastic weld rod filament extrusion machine
No	Machine name	Qty
1	Hopper dryer+ Auto loader	1 set
2	SJ-50 Single screw extruder	1 set
4	Mold	1 set
5	Water tank	1 set
6	Haul off machine	1 set
7	Winding machine	1 set

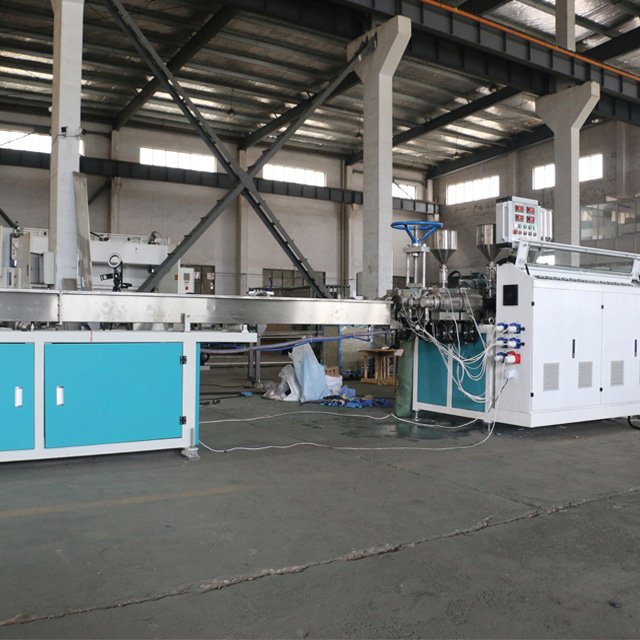

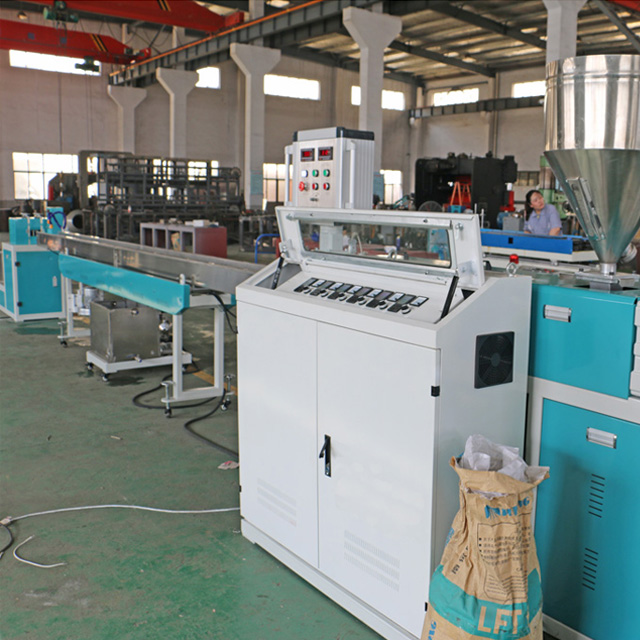

Machine pictures for reference:

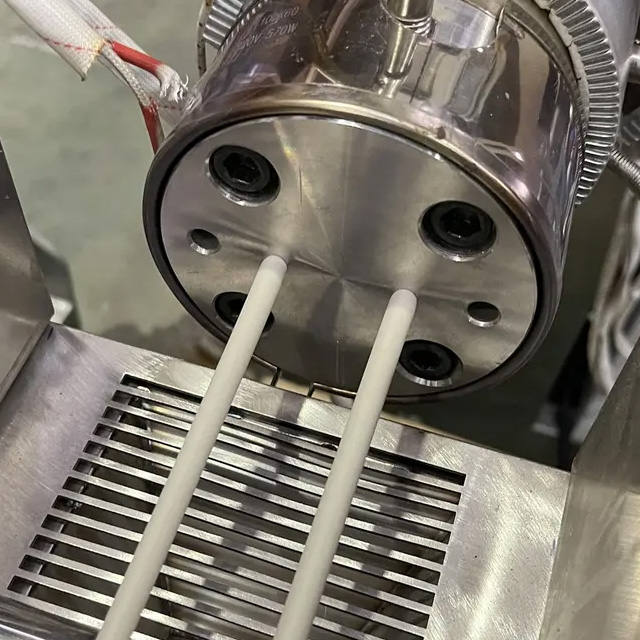

Double output:

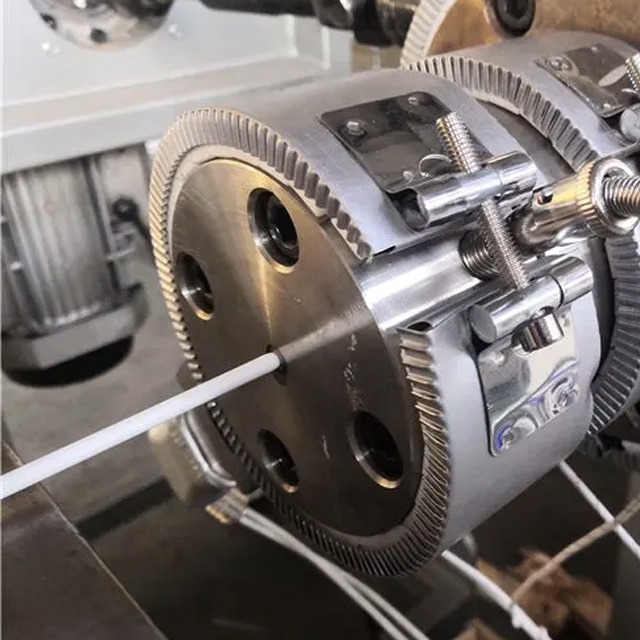

Single output:

plastic welding rod extrusion line 21

plastic welding rod extrusion line 25

plastic welding rod extrusion line 23

weld rod extrusion line weld rod production line plastic weld rod extrusion line plastic weld rod production line pvc weld rod extrusion line pvc weld filament extrusion line weld filament extrusion line pvc weld filament production line pp pe weld filament extrusion line
