PET Strap Band Production Line Machine, PET Packing Strap Machine, PET Packing Strap Extruder Machine, PET Packing Strap Belt Extrusion Machine Description of PET Packing strap extrusion machine PET packing strap is widely used in packing applications, it can replace the steel strap for packing application, as its good tensile strength, flexible, low prolongation rate, good performance of high temperature resistant, non-rustiness, and low use-cost, etc, it is used in steel, construction material, chemical fiber, paper making, tobacco, agriculture, election, etc.
Features of PET Packing strap making machine, PET Packing Strap Belt Production Machine 1. Screw with compression ratio especially for PET, gradually changing diameter and deeper thread groove at the melting part;
2. Gearbox with hardened gears; Die can be precisely adjusted to ensure stable production and smooth surface of straps;
3. Stainless steel cooling tank with four thermo treatment processes displaces the traditional one;
4. Haul off rollers with bigger size ensure the quality of products;
Advantage of PET Packing strap making machine 1.Special design of the screw extrusion technology can be choosing as per customer needs.
2.Can process 100% recycled PET bottle flakes or pellets.
3.Plasticization and stable extrusion can with PLC automatic control for the full line.
4.According different requirements, changing materials for make strap have better and special function. For example, the strap for packing cotton can be from enhancing the breaking strength and joint strength when welding strap.
5.Melt filter with two pistons with air venting design and back flushing.
6.Number of strap:1,2,4,6,Width: 5mm-22mm,Thickness: 0.5mm-1.5mm
7.Workers: 2 -3 workers per shift, 12 hours/shift.
Technical parameter
| Model | Capacity | Strap Size | Installed Power | ManPower | L*W*H |
| SJ65/33 Single Strap | 50-60 kg/h | 9-19 mm | 85 KW | 2 | 35*4*5 m |
| SJ75/33 Single Strap | 80-100 kg/h | 9-19 mm | 100 KW | 2 | 38*4*5 m |
| SJ75/33 Double Strap | 80-120 kg/h | 9-19 mm | 110 KW | 2 | 40*4*6 m |
| SJ90/33 Double Strap | 150-120 kg/h | 9-19 mm | 150 KW | 2 | 45*5*7 m |
| SJ120/33 Triple Strap | 200-250 kg/h | 9-19/25 mm | 220 KW | 2 | 45*5*7 m |

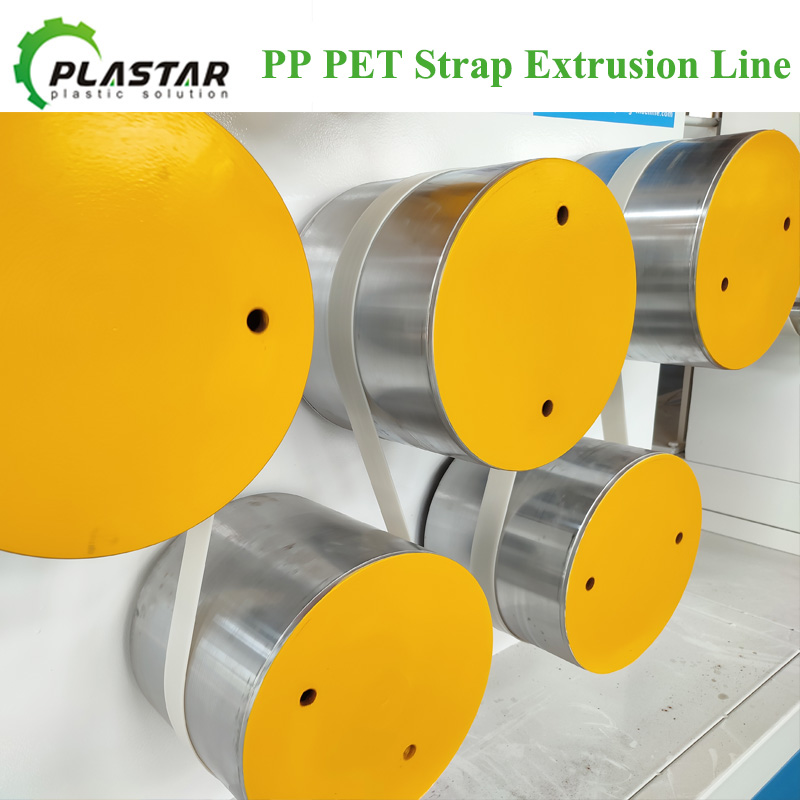

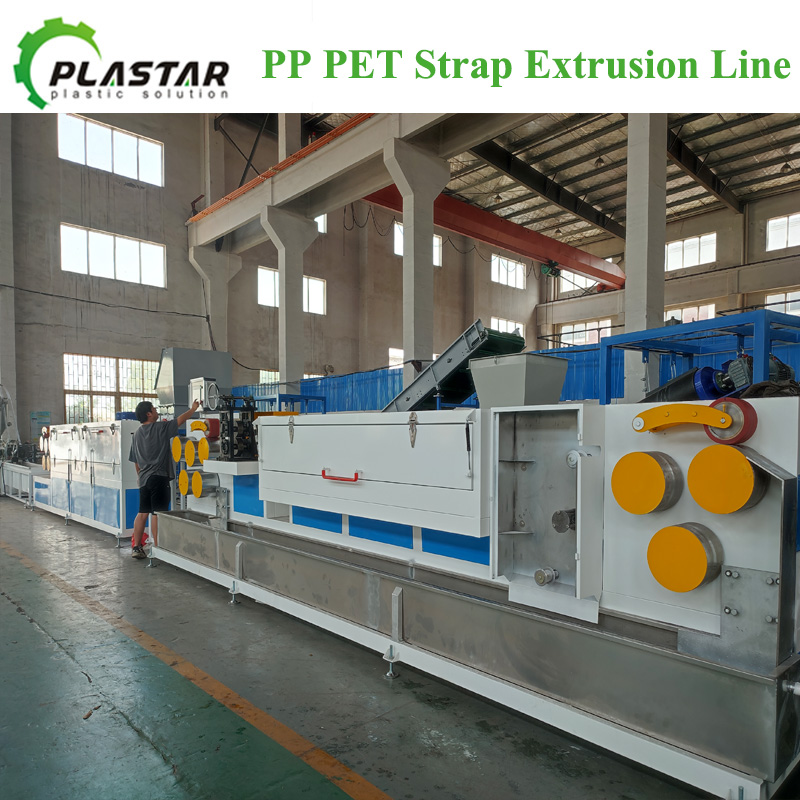

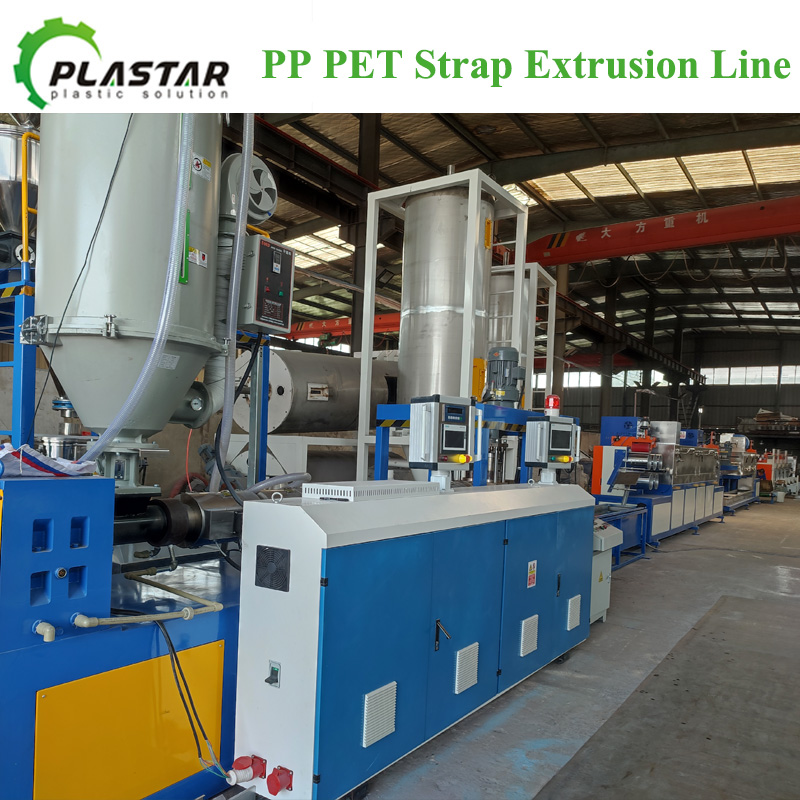

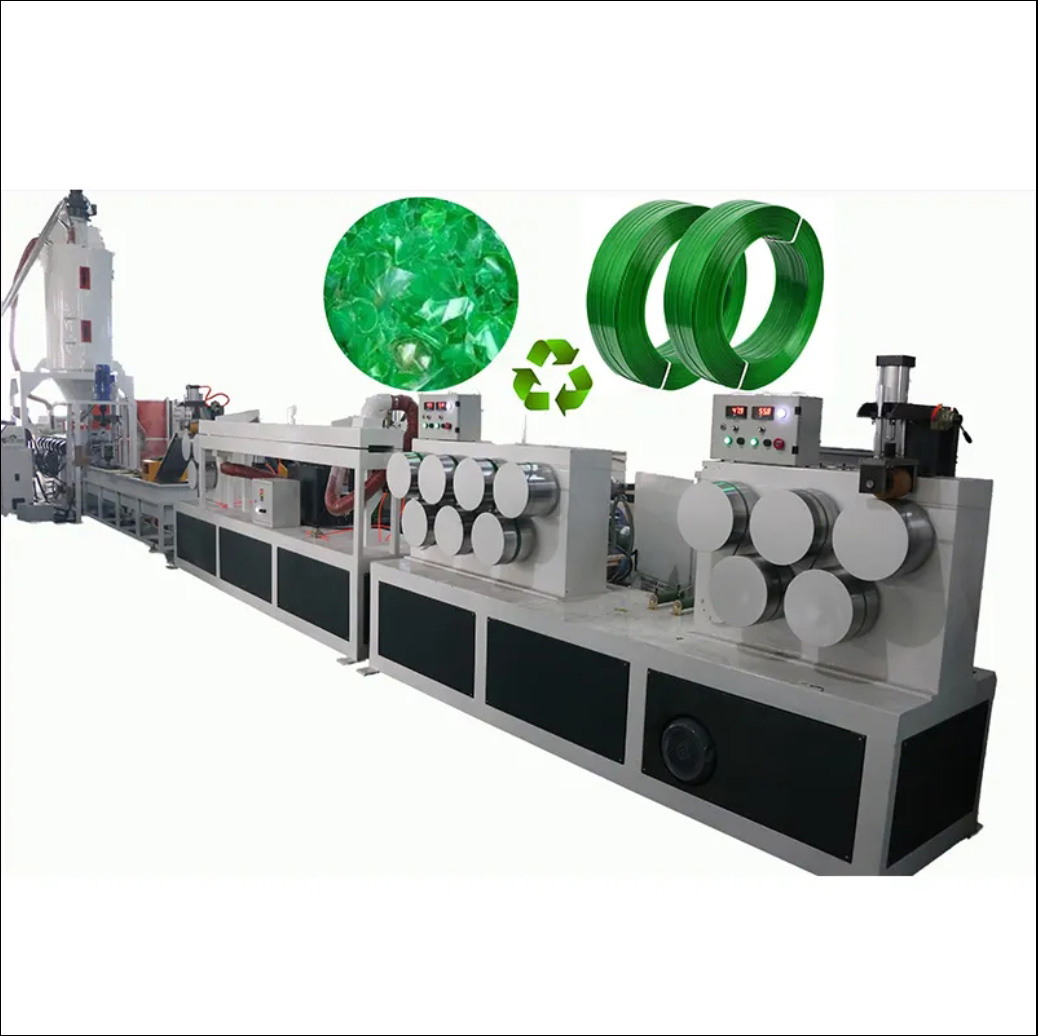

Machine pictures:
