Laboratory Small 20mm Parallel Twin Screw Extruder

According to the screw structure, we can divide the extrusion into single screw, twin screw and three screw extruder. this mode is parallel twin screw extruder, it is suitable for PP, PE, PET, ABS etc.

Screw diameter:	20mm
L/D:	40:1
Availability:

Quantity:



Inquire Add to Basket

Model:
PSD20
Brand:
PLASTAR

Product Description

Twin-screw extruder is widely used in the field of plastic extrusion. Among them, the twin-screw has a better plasticizing effect for plastic particles due to its large torque and strong shearing force, and is suitable for mixing and plasticizing various raw materials at the same time.

This lab parallel twin screw extruder can be widely used to produce different plastic products such as masterbatch, recycling pellets, plastic sheet, plastic filament and so on.

Basic description

Raw material	PLA/PP/PE/ABS/PA/PC etc.
Capacity	0~20kg/h
Screw dia	20mm
Screw type	Twin-screw
Screw speed	144rpm
L/D	40:1
Power supply	5.5kw
Operation system	Siemens PLC

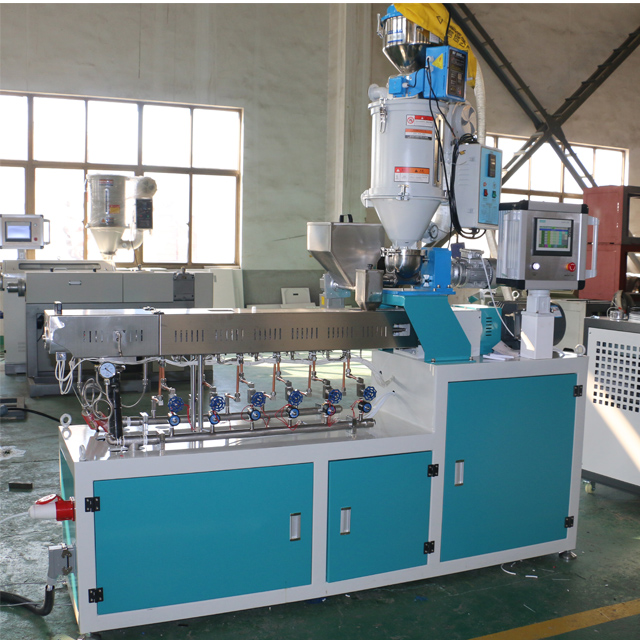

Lab Parallel twin screw extruder picture for reference:

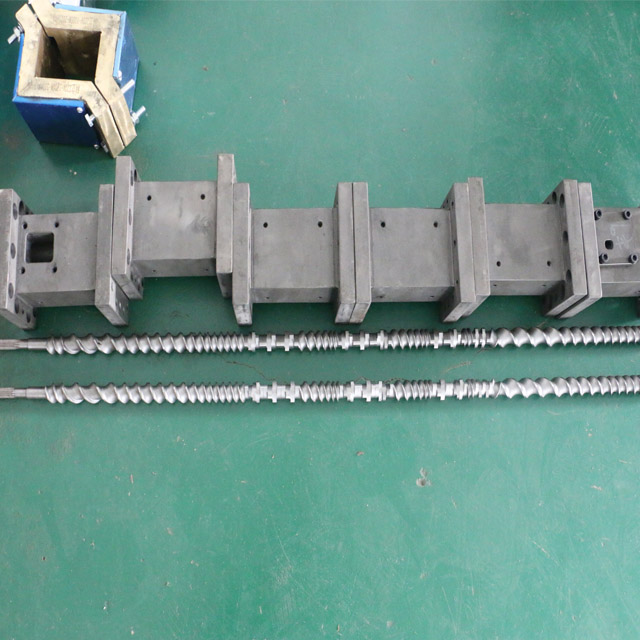

twin scerw extruder 3

twin scerw extruder 2

parallel twin screw extruder lab twin screw extruder 20mm twin screw extruder small twin screw extruder laboratory parallel twin screw extruder
